2x1 color-tunable panel

EVO is an instrument made to extend your creative possibilities, to set up faster, and to remotely adjust on the fly on any location or any studio.

EVO offers everything you need from a professional color light: industry-leading output-to-weight and output-to-watt ratios, full output from standard 14.4V batteries, wireless control, solid reliability, silent fan-free operation and a weatherproof ergonomic housing.

control modes

settings in one mode can be fine-tuned in any other

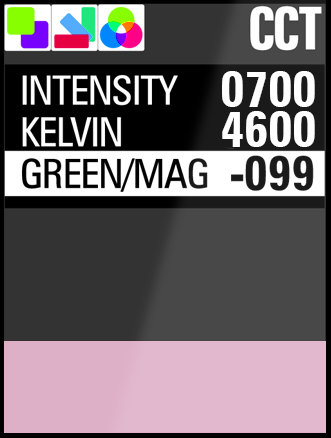

  • CCTWhite Light? Then CCT mode is perfect: Intensity, Kelvin and Green/Magenta
  • HSI+Adjust Intensity, Saturation, Hue and also Kelvin to match any possible colour
  • RGB+Adjust Intensity, Red, Green and Blue channels separatety plus Cool White and White
  • GELSChoose any standard Gels, Light Source or save your own Gels and Effects
  • EFFECT

VELVET GOYA APP

Using the VELVET GOYA App on any Android or IOS mobile device gives you instant full control over any EVO panel. You can create, save, load or share your own gels or user profiles, and use the app’s color-picker to recreate colors from a photo or image. Your creative possibilities are unlimited.

The quick, precise and shareable VELVET GOYA App takes control and color adjustment of the EVO panel to a new level. The HSI advanced mode even includes an intuitive and user-friendly 360º color sphere interface. And with the EVO, settings made in one mode can be fine-tuned in any other mode.

  • CCT
  • HSI
  • RGB+
  • GELS
  • EFFECT

total control

EVO features wireless DMX from LumenRadio, and EVO is RDM-enabled for fast addressing and channel-assignment workflow. With the DMX master/slave function, start with one fixture and link several fixtures through DMX and operate them all in unison without a console!

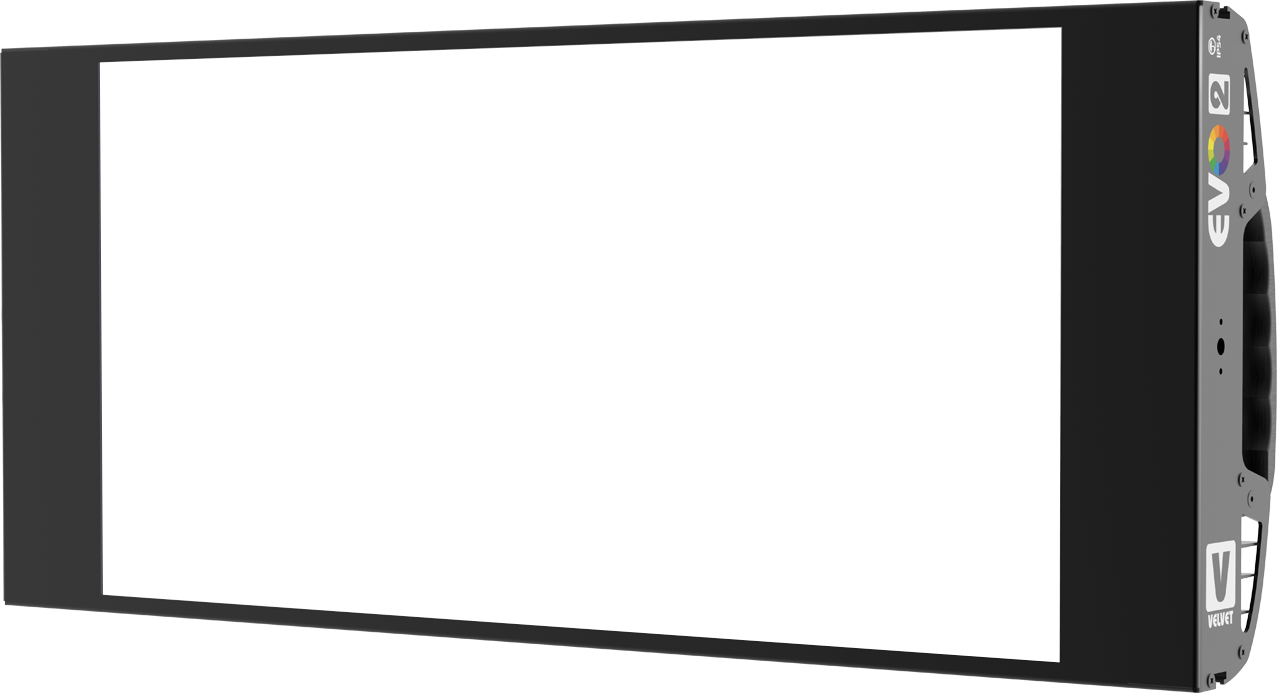

is a BLANK CANVAS

GEL mode lets you select from a wide variety of standard gels and practical light sources. EFFECTS are fully adjustable for color, speed and frequency.
The EVO 5LED technology lets you set your color in one mode and fine-tune it in any other mode, as well as layer any color over any white light color temperature.

You can further adjust gels or effects to create, save, load and share your own presets as user profiles, or use the VELVET GOYA color picker to recreate colors from a photo or an image.

Your creative possibilities are unlimited!

location

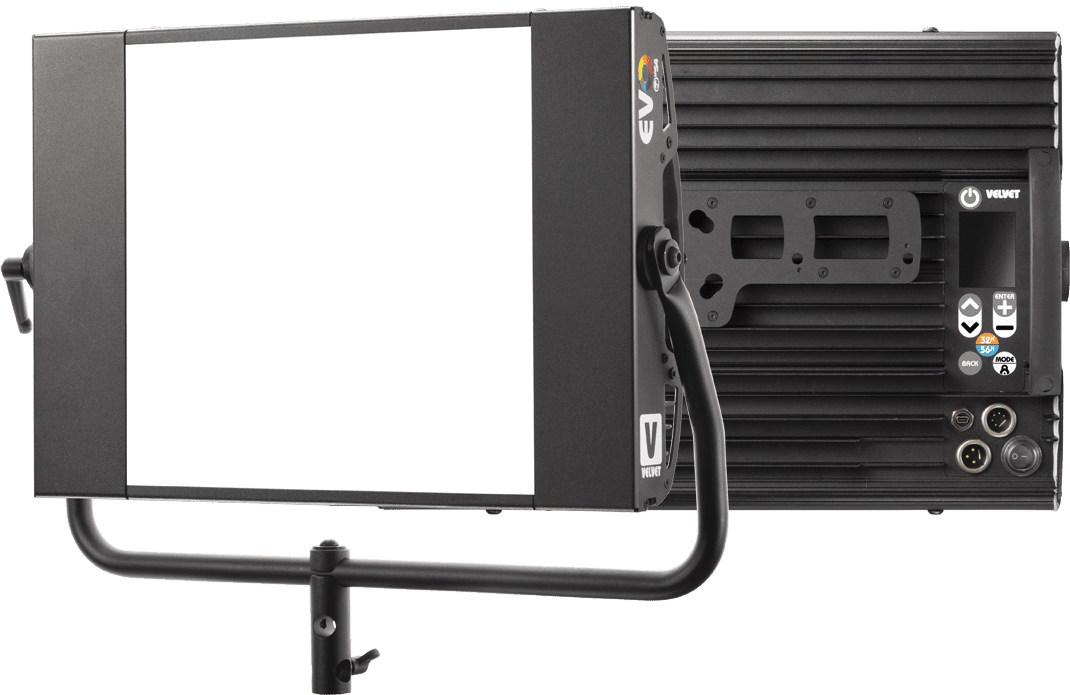

EVO 1 is a portable, weatherproof RGB+W+CW LED panel with a robust aluminum housing, designed specifically to endure the toughest working conditions in wet or dusty locations. EVO 1 delivers full power light around one hour using a single 90Wh 14.4V battery.

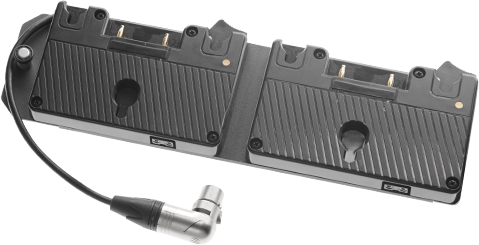

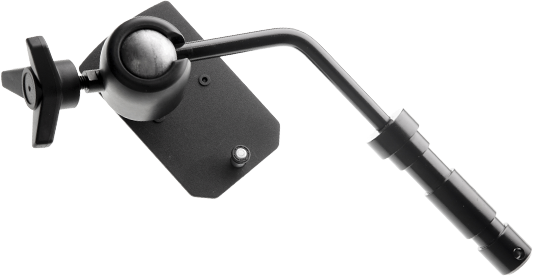

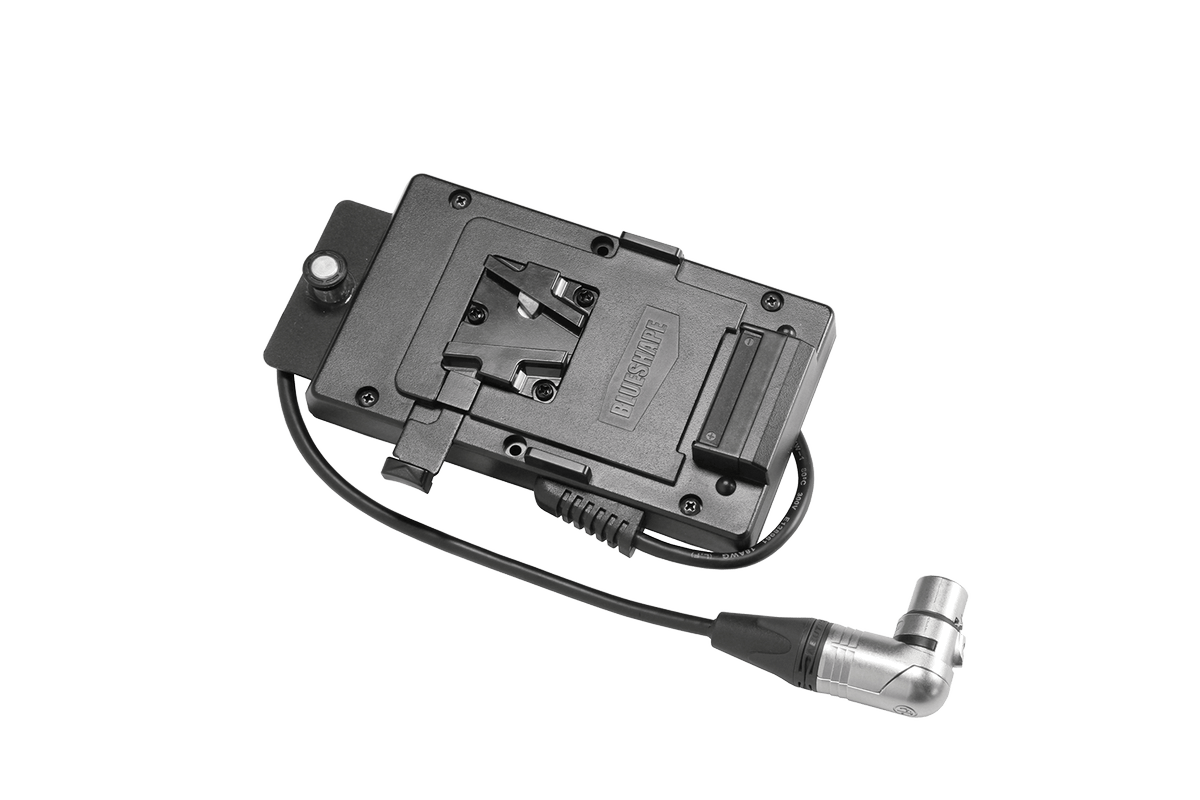

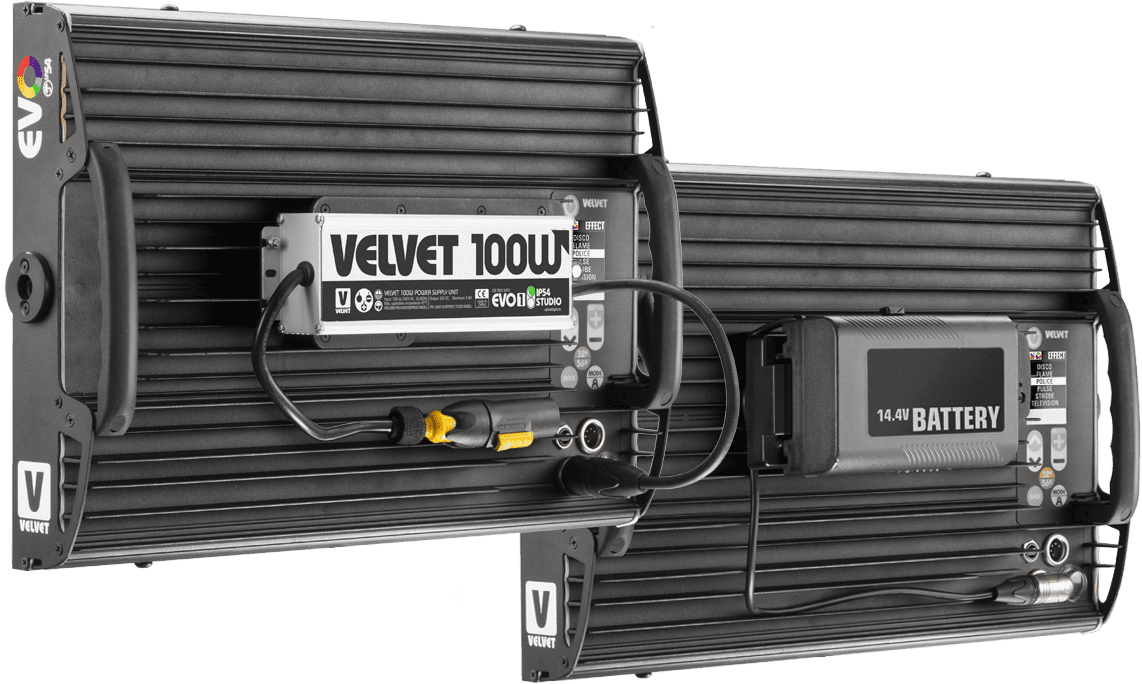

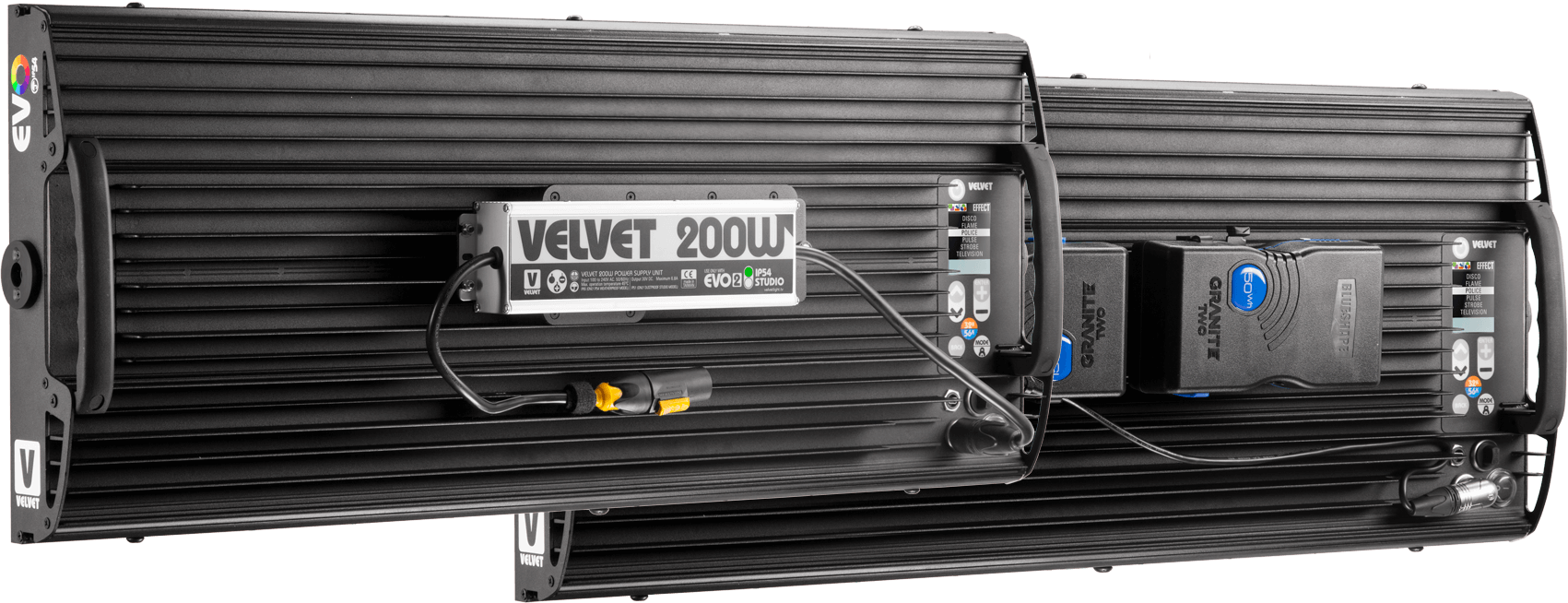

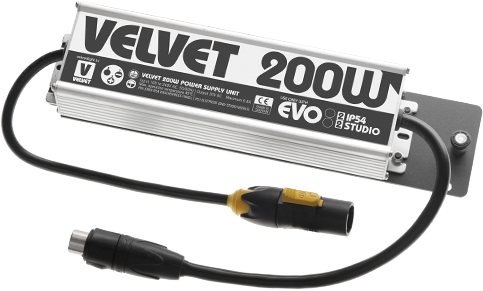

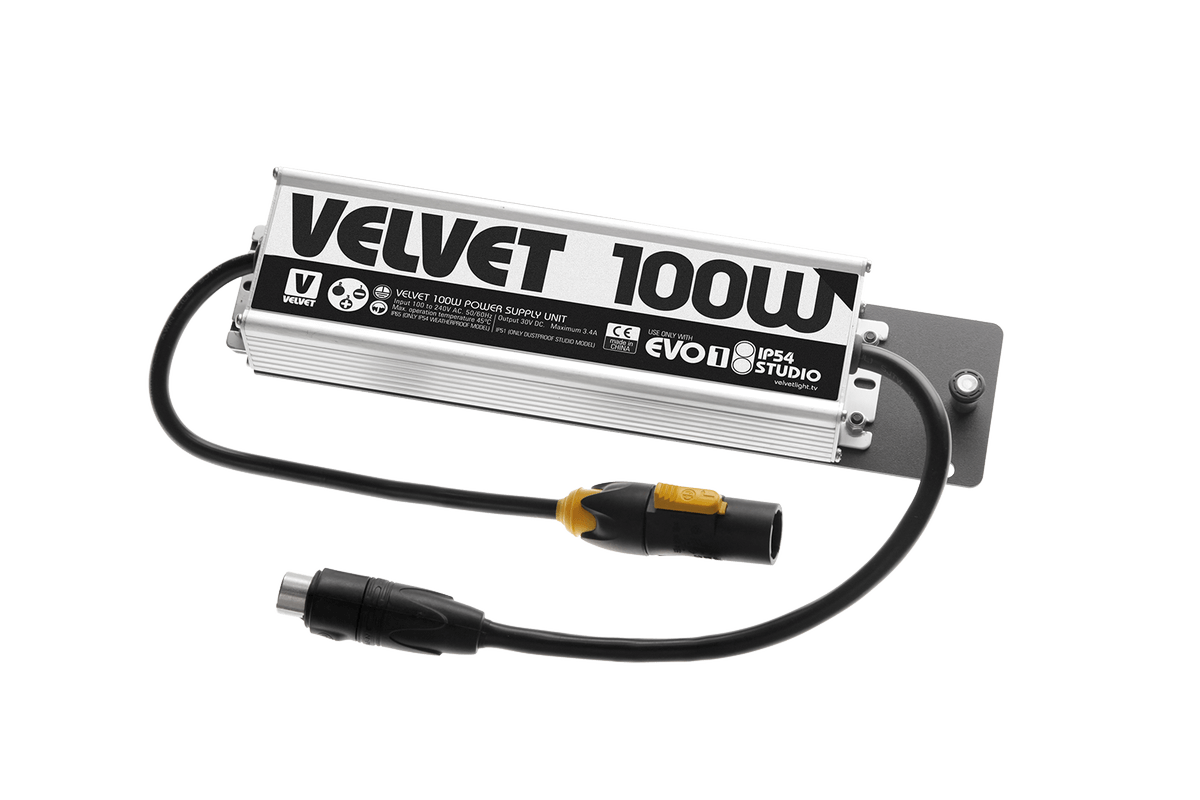

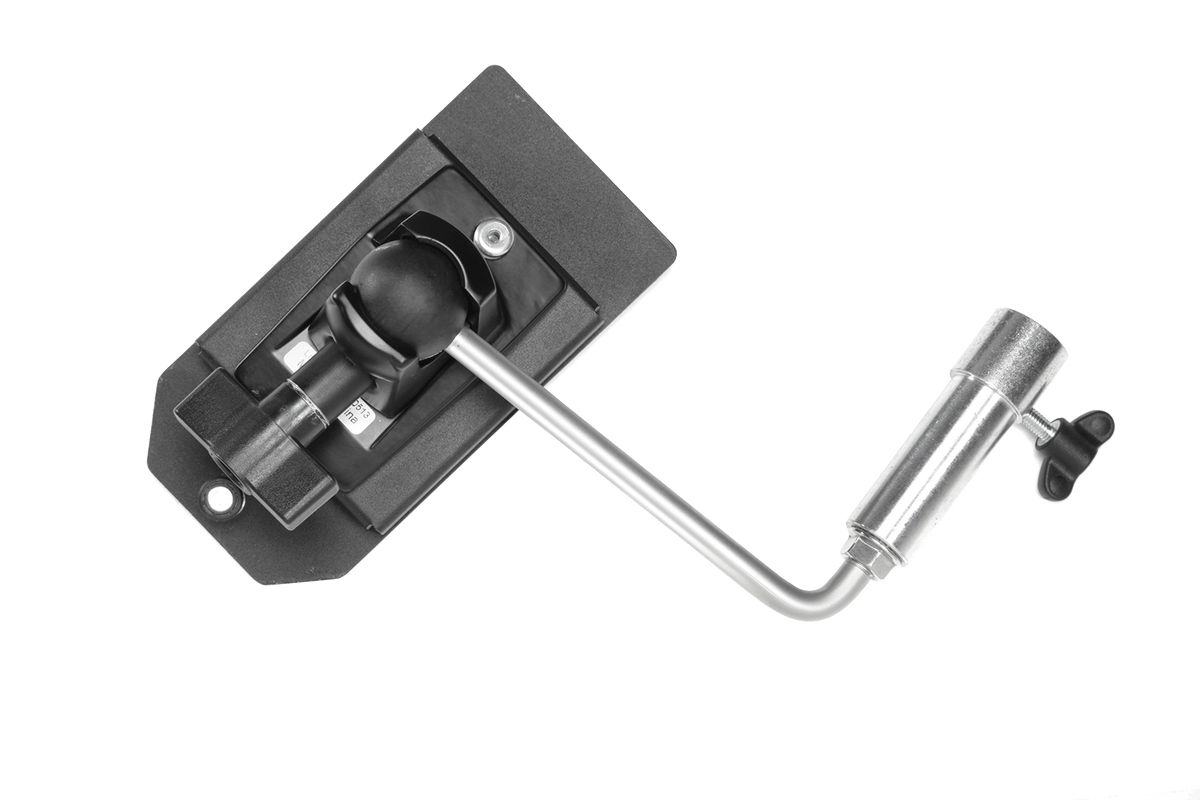

EVO’s back panel has a twist-on plate to quickly install the battery mount, AC power supply, or center ball mount.

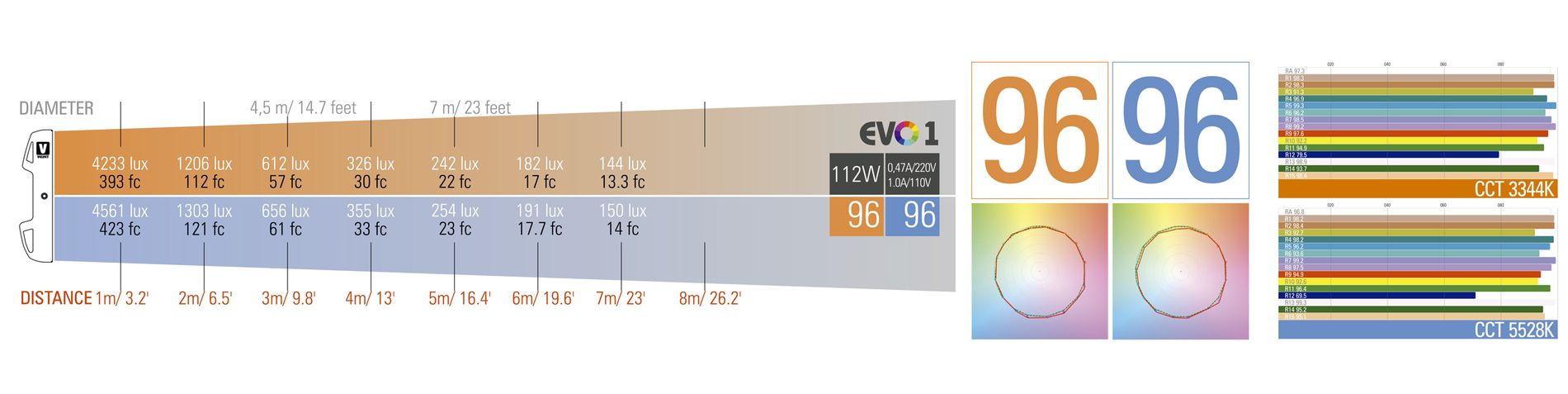

Photometrics

technical specifications

BEAM ANGLE 115º

COLOR TEMPERATURE continuously adjustable from 2500K to 10.000K

LIGHT INTENSITY dimmable 0 to 100, smooth and flicker-free

GREEN-MAGENTA continuously adjustable from full minusgreen to full plusgreen

COLOR SPECTRUM full color R+G+B+W+CW with Hue, Saturation & base color temperature control

CONTROL COLOR MODES CCT, HSI+, GEL, R+G+B+W+CW and EFFECTS modes
base Kelvin white light can be set combined with any color

LOCAL CONTROL with 8x shock resistant buttons and color display

WIRE CONTROL DMX-RDM with XLR-5 in connector

WIRELESS CONTROL DMX-RDM with LumenRadio CRMX Wi-Fi Art-Net +VELVET Goya App, Bluetooth

COLOR RENDERING exceeds 96 CRI and TLCI

DIMENSIONS 453 x 318 x 92mm / 17.8 x 12.5 x 3.6 inches

PANEL WEIGHT 4.4 kg / 9.7 lbs

PANEL + YOKE WEIGHT 4.9 kg / 10.8 lbs

POWER 112W (1.0 Amps at 110 VAC)

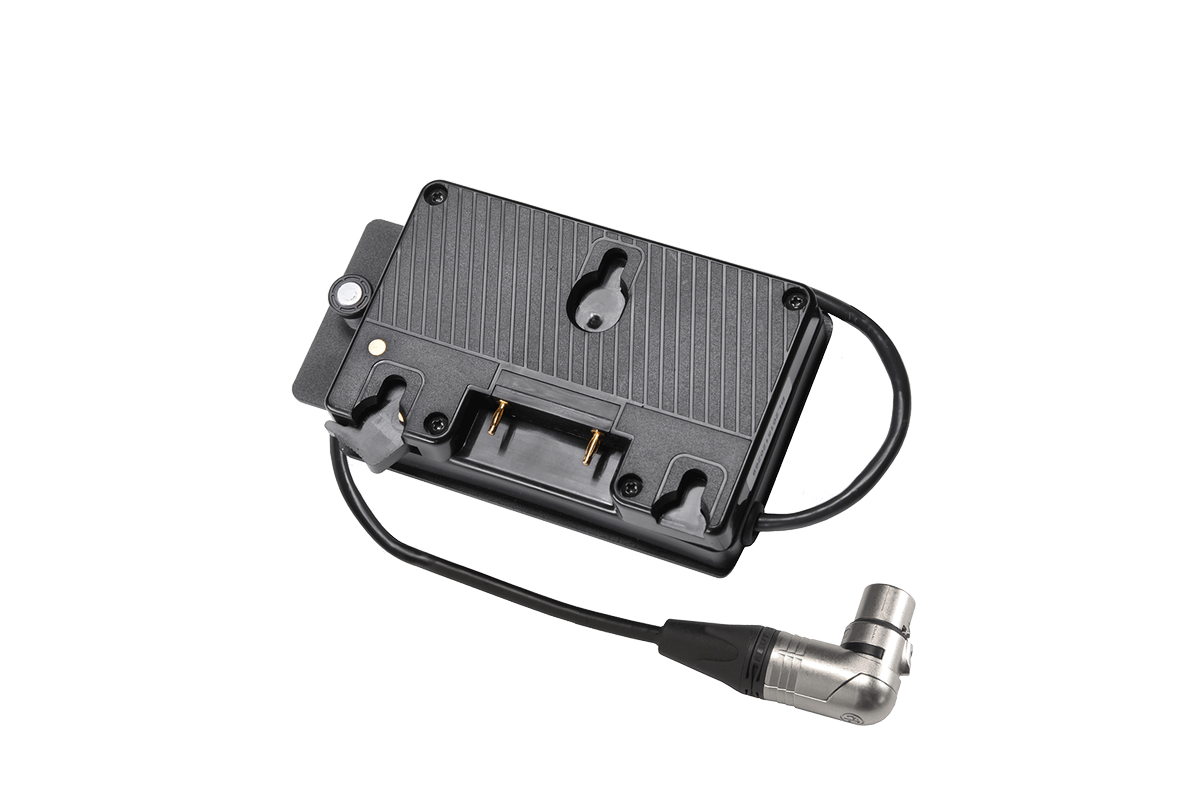

POWER SUPPLY 12-35V DC (XLR3). VLock/ Gold mount battery 90-264V AC 50/60Hz

LED RATED LIFE more than 50.000 hours

COOLING silent and fan-free passive cooling

PROTECTION IP54 rain and dustproof, indoor or outdoor use

CONSTRUCTION & FINISH fixture and yoke made of black powdercoated extruded and sheet aluminum

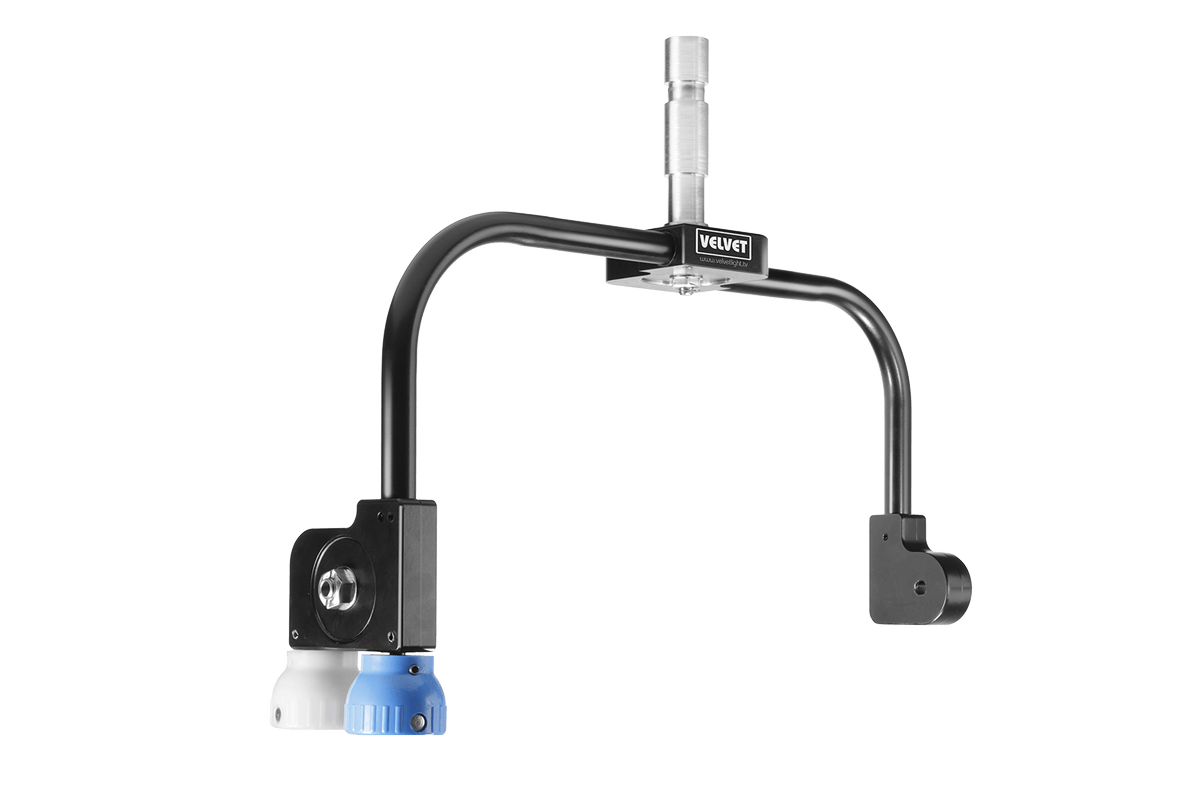

RIGGING OPTIONS aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, center ball-head mount, multiple 1/4”- 20 rigging points, pole operated yoke.

Specifications subject to change without notice

studio

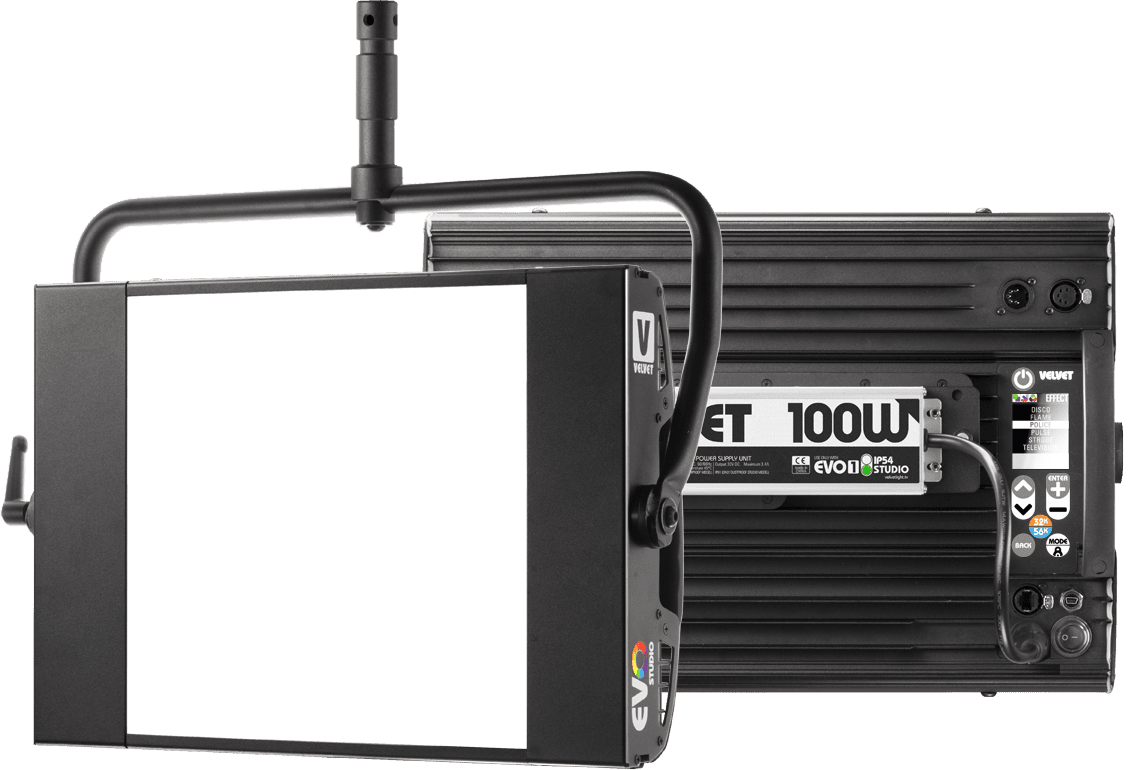

EVO 1 Studio is a dustproof, maintenance-free RGB+W+CW LED panel, which runs completely silent, with no fans to service. It operates exclusively on AC power and includes in and through DMX XLR5 connectors for daisychaining, Ethernet control through RJ-45 and wireless control through Art-Net Wi-Fi. Its low weight, slim 92mm/3.6” profile and industry-leading power efficiency speed up installation.

Photometrics

studio technical specifications

BEAM ANGLE 115º

COLOR TEMPERATURE continuously adjustable from 2500K to 10.000K

LIGHT INTENSITY dimmable from 0 to 100, smooth and flicker-free

GREEN-MAGENTA continuously adjustable from full minusgreen to full plusgreen

COLOR SPECTRUM full color spectrum R+G+B+W+CW with hue, saturation, and base color temperature control

CONTROL COLOR MODES CCT, HSI+, GEL, R+G+B+W+CW and EFFECTS modes
base Kelvin white light can be set combined with any color

LOCAL CONTROL with 8x shock resistant buttons and color display

WIRE CONTROL DMX-RDM with XLR-5 in & through connectors Ethernet Art-Net with RJ-45 connector

WIRELESS CONTROL Wi-Fi Art-Net +VELVET Goya App

COLOR RENDERING exceeds 96 CRI and TLCI

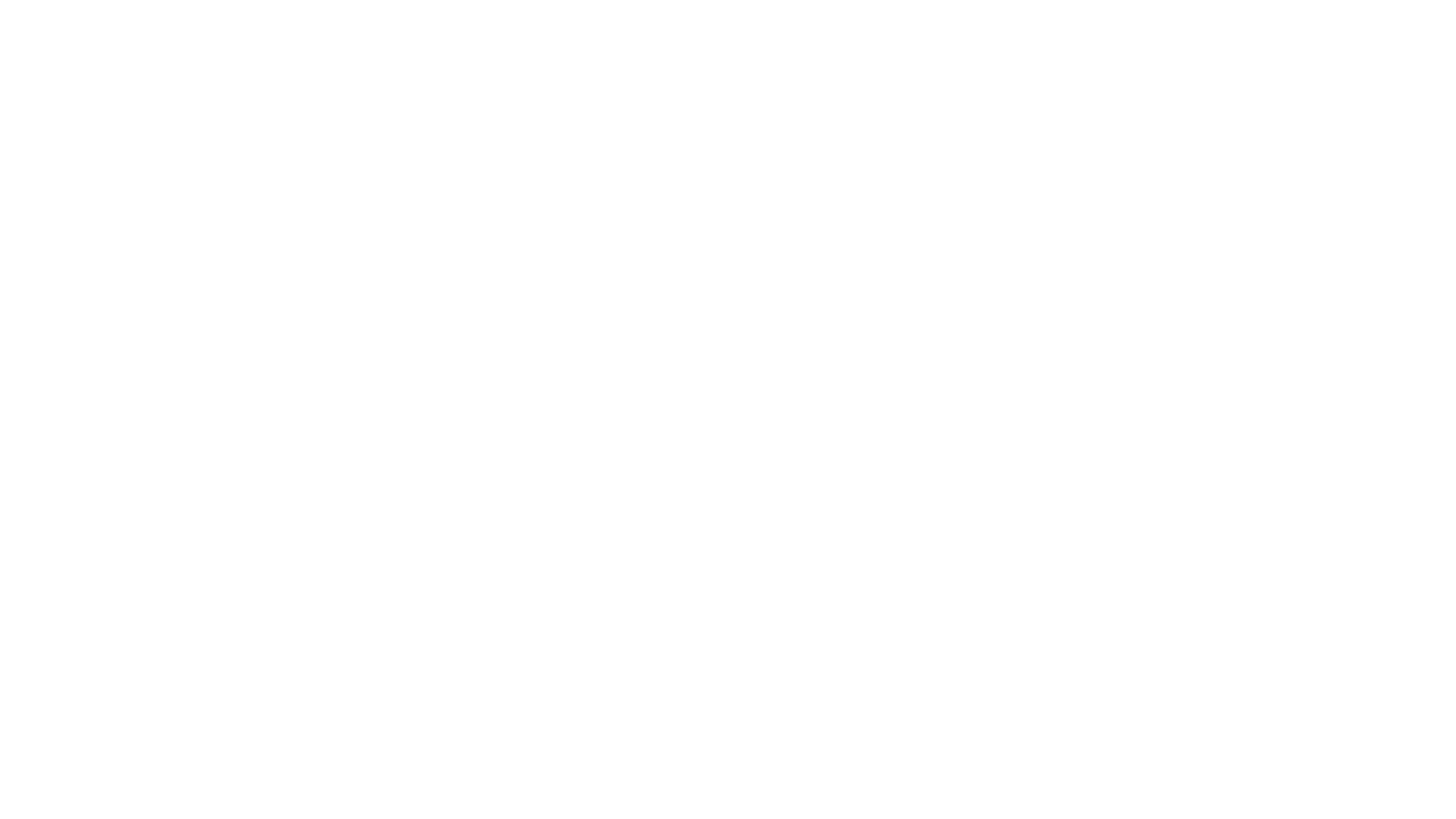

DIMENSIONS 453 x 318 x 128mm / 17.8 x 12.5 x 5 inches

PANEL WEIGHT 5.6 kg / 12.3 lbs

PANEL + YOKE WEIGHT 6.1 kg / 14.4 lbs

POWER 112W (1.0 Amps at 110 VAC)

POWER SUPPLY 90-264V AC 50/60Hz

LED RATED LIFE more than 50.000 hours

COOLING silent and fan-free pasive cooling

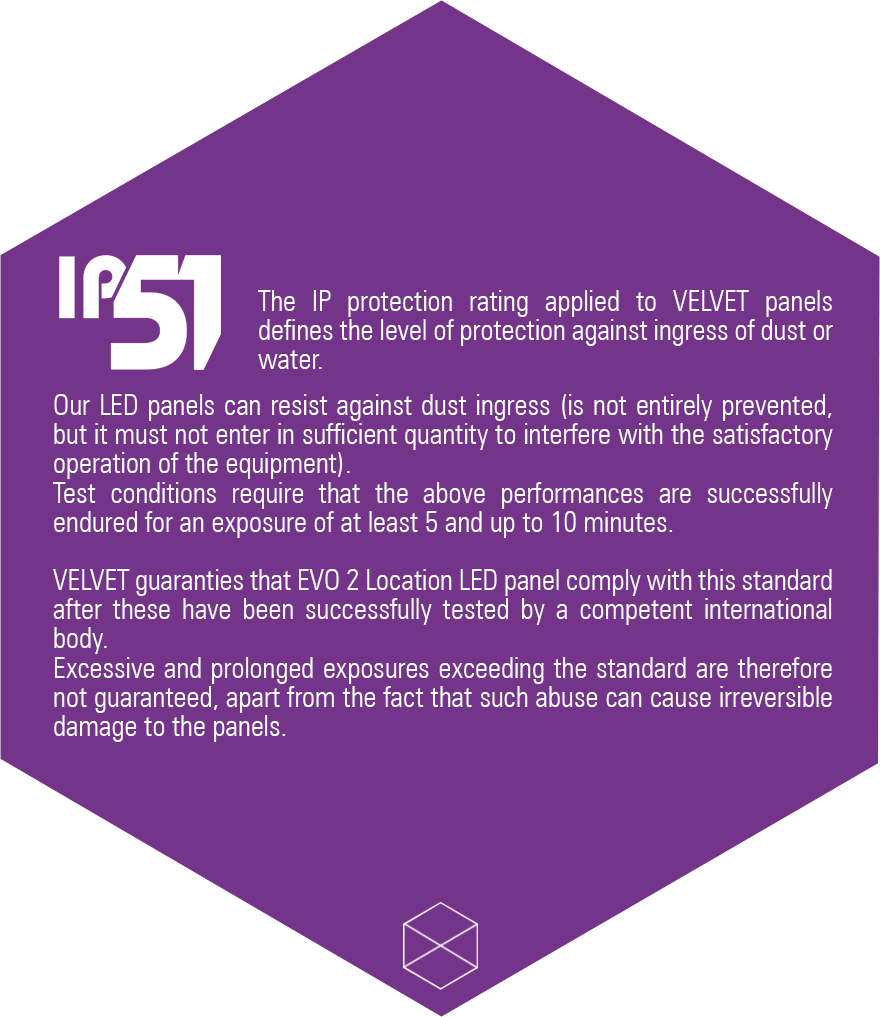

PROTECTION IP51 dustproof, indoor or outdoor use

CONSTRUCTION & FINISH fixture and yoke made of black powdercoated extruded and sheet aluminum

RIGGING OPTIONS aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, multiple 1/4”- 20 rigging points, pole operated yoke.

Specifications subject to change without notice

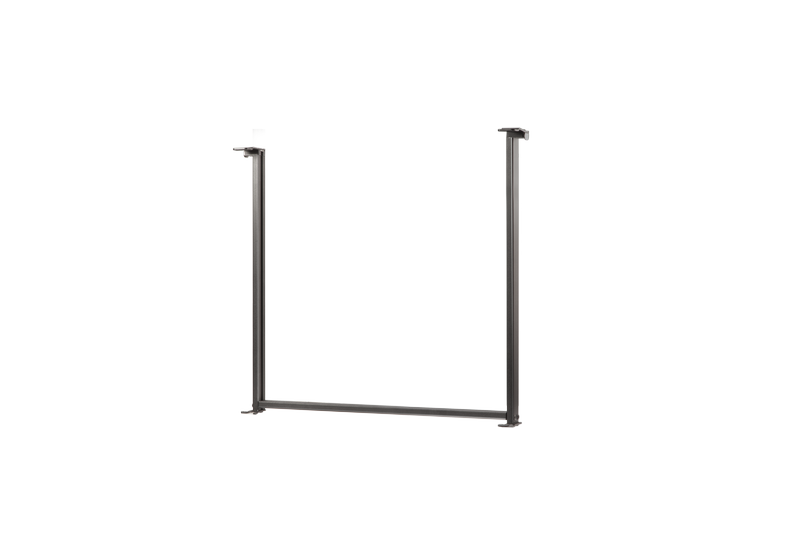

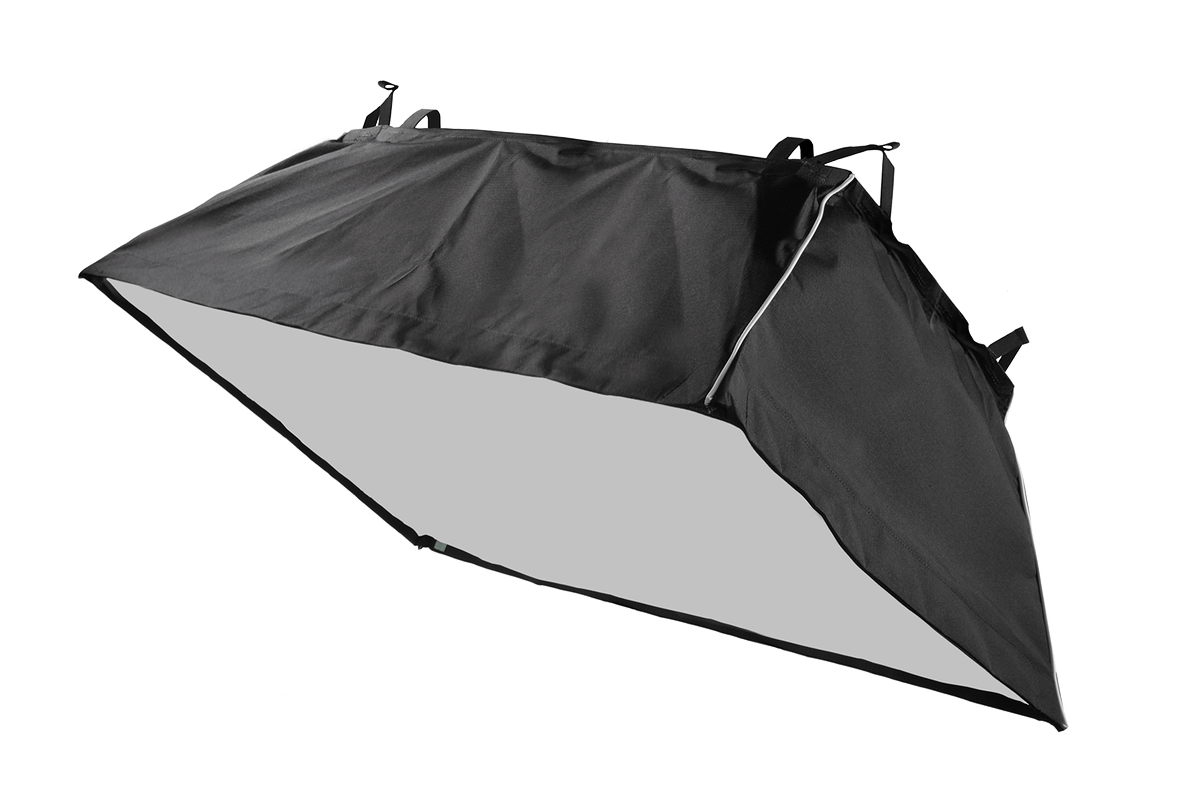

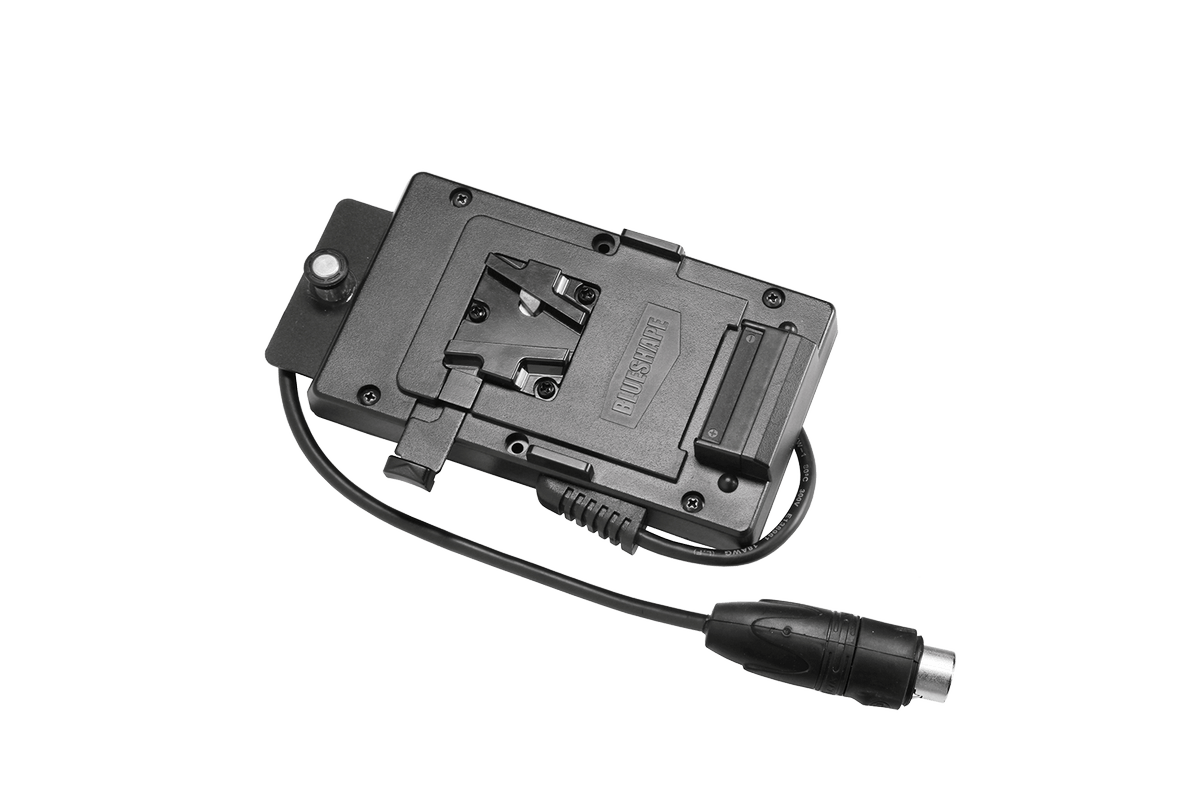

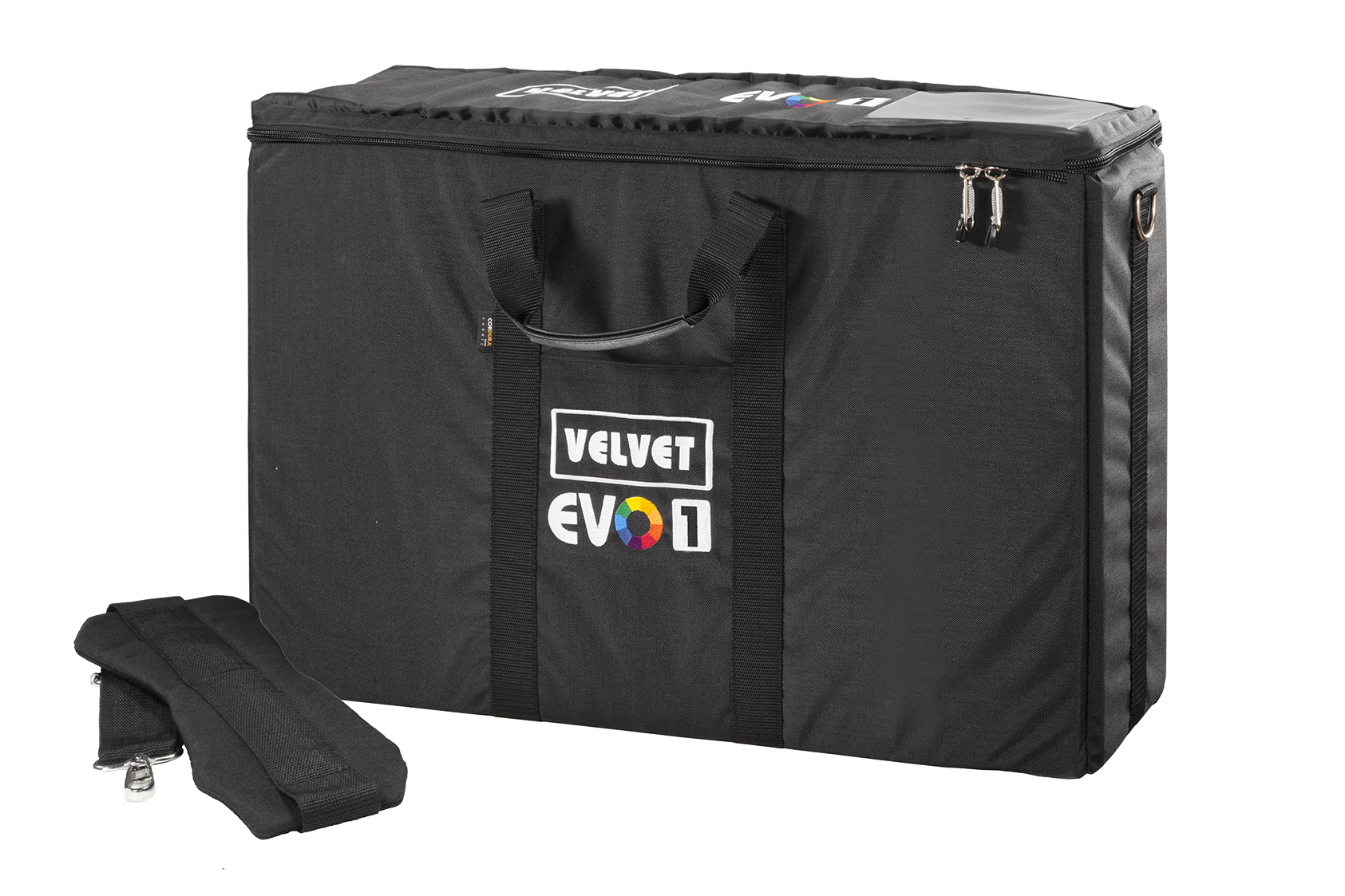

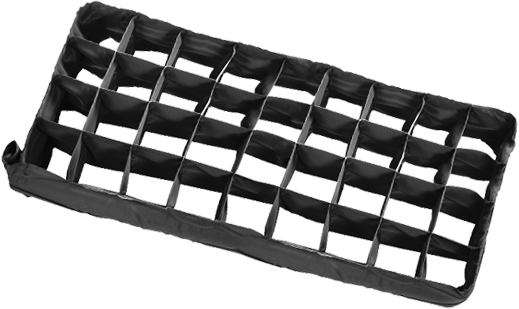

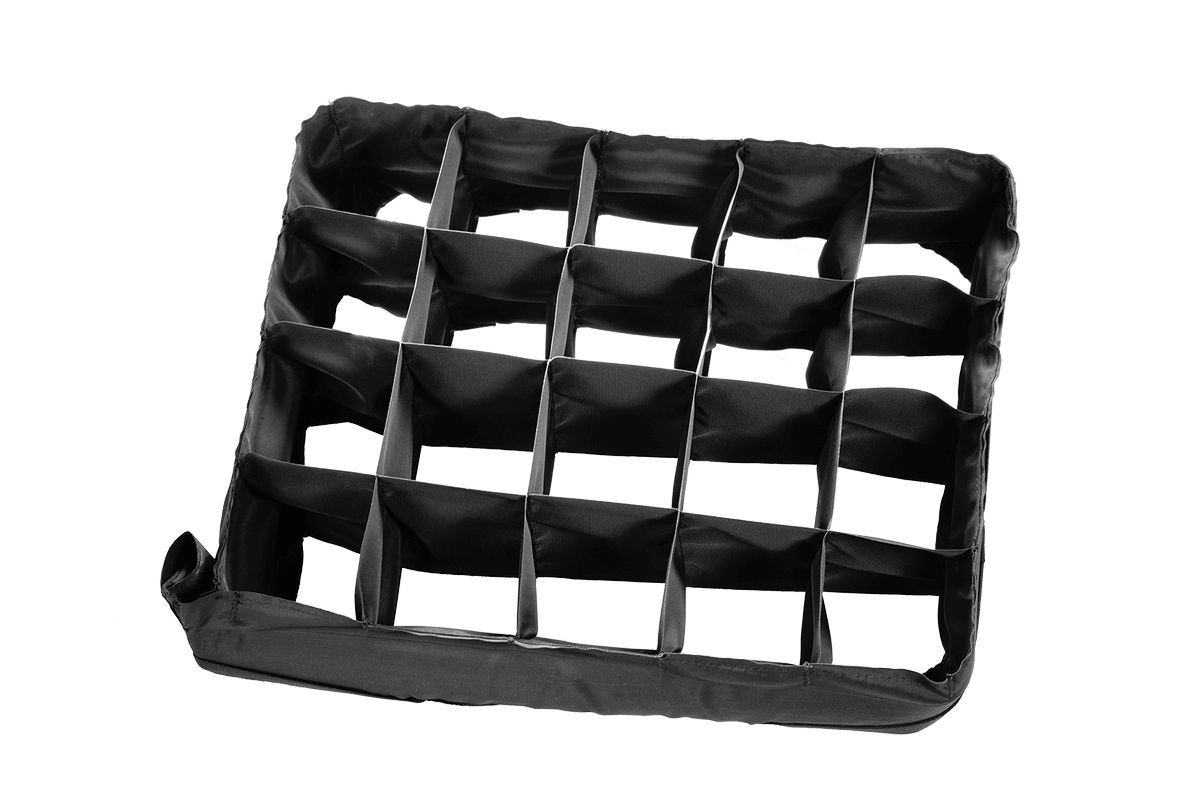

Accessories

location

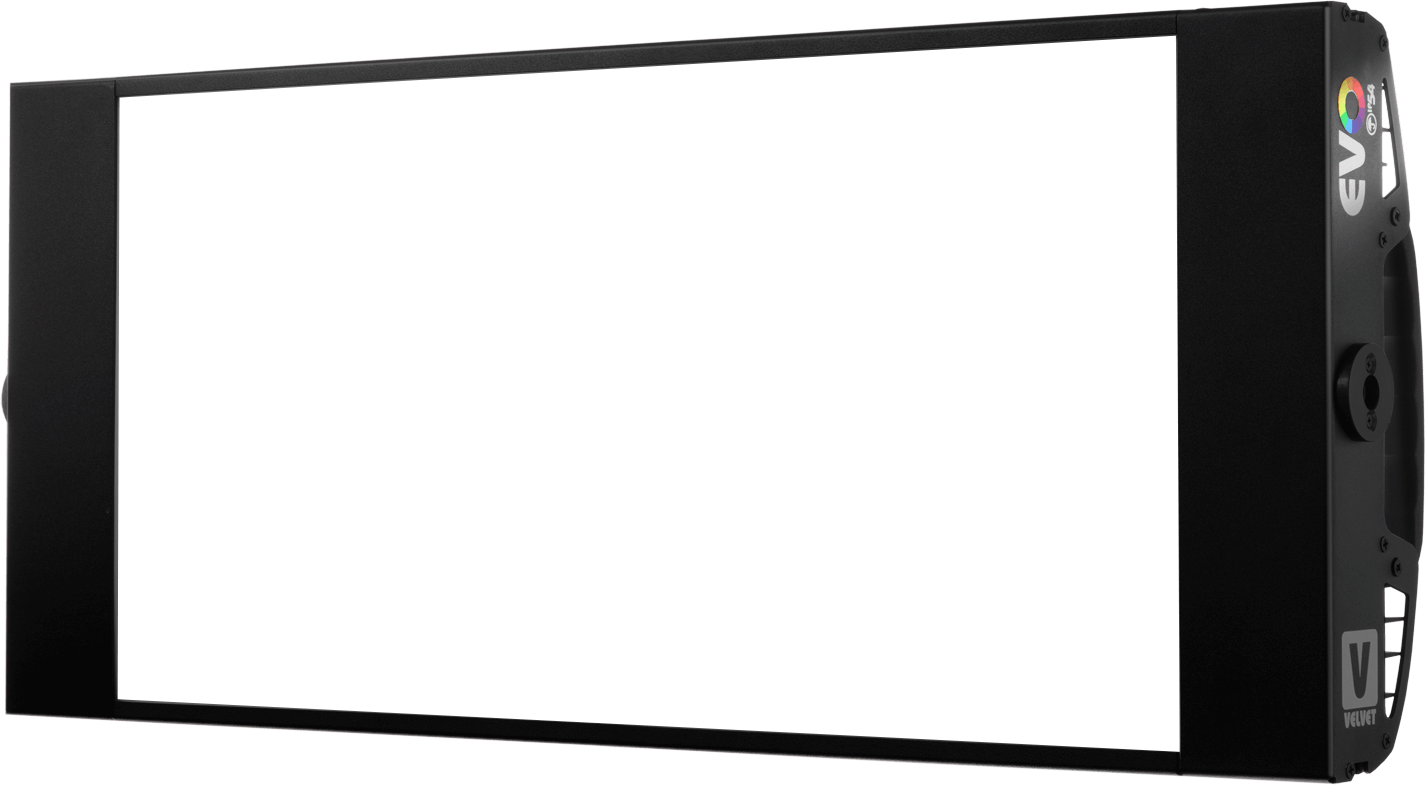

EVO 2 is a weatherproof panel with a 100% aluminum housing, designed specifically to endure the toughest working conditions in wet or dusty locations.

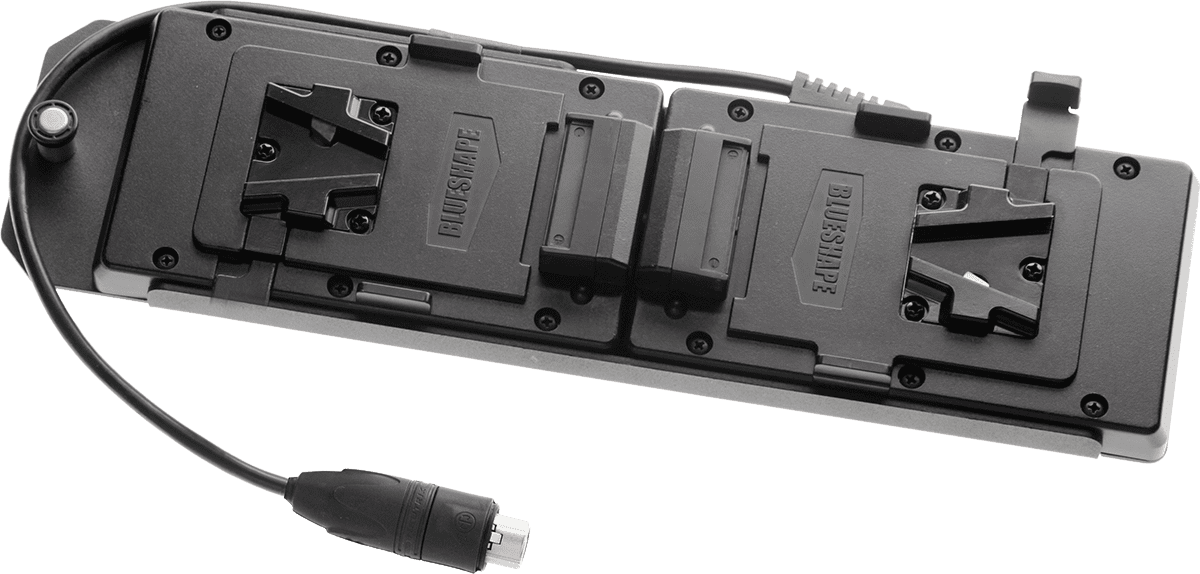

It delivers the same full output powered by two standard V-Lock or Gold Mount batteries as it does from AC power. EVO’s back panel has a twist-on plate to quickly install the battery mount, AC power supply, or center ball mount.

Photometrics

technical specifications

BEAM ANGLE 115º

COLOR TEMPERATURE continuously adjustable from 2500K to 10.000K

LIGHT INTENSITY dimmable 0 to 100, smooth and flicker-free

GREEN-MAGENTA continuously adjustable from full minusgreen to full plusgreen

COLOR SPECTRUM full color spectrum R+G+B+W+CW with hue, saturation, and base color temperature control

CONTROL COLOR MODES CCT, HSI+, GEL, R+G+B+W+CW and EFFECTS modes
base Kelvin white light can be set combined with any color

LOCAL CONTROL with 8x shock resistant buttons and color display

WIRE CONTROL DMX-RDM with XLR-5 in connector

WIRELESS CONTROL DMX-RDM with LumenRadio CRMX Wi-Fi Art-Net +VELVET Goya App, Bluetooth

COLOR RENDERING exceeds 96 CRI and TLCI

DIMENSIONS 753 x 318 x 92mm / 29.6 x 12.5 x 3.6 inches

PANEL WEIGHT 6.9 kg / 15.2 lbs

PANEL + YOKE WEIGHT 7.6 kg / 16.7 lbs

POWER 225W (2.0 Amps at 110 VAC)

POWER SUPPLY 24-35V DC (XLR3). VLock/ Gold Mount battery plate 90-264V AC 50/60Hz

LED RATED LIFE more than 50.000 hours

COOLING silent and fan-free passive cooling

PROTECTION IP54 rain and dustproof, indoor or outdoor use

CONSTRUCTION & FINISH fixture and yoke made of 100% black powdercoated extruded and sheet aluminum

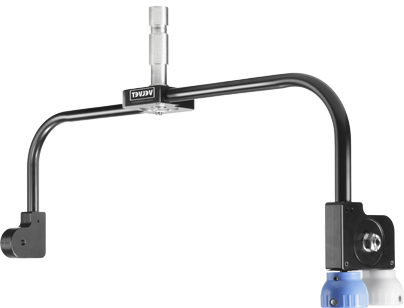

RIGGING OPTIONS aluminum yoke with 28mm junior pin, multiple ¼”-20 rigging points, pole-operated yoke.

Specifications subject to change without notice

studio

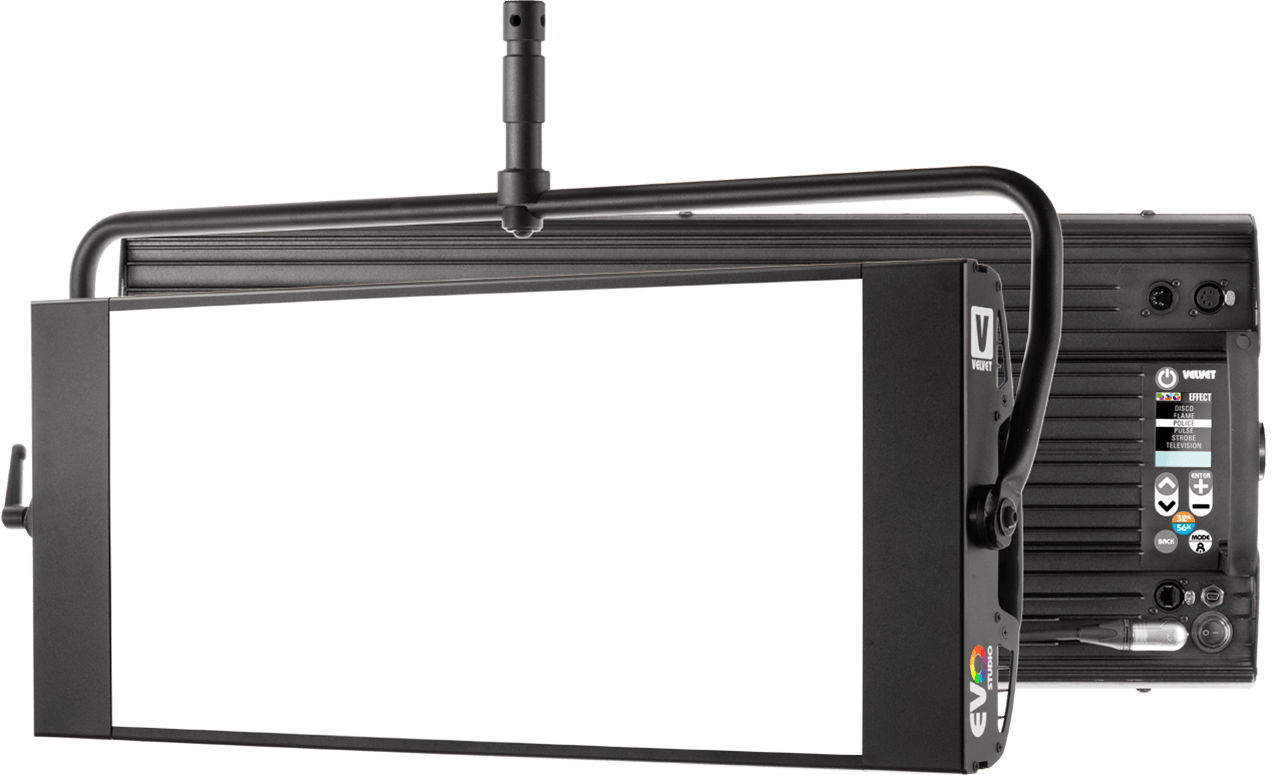

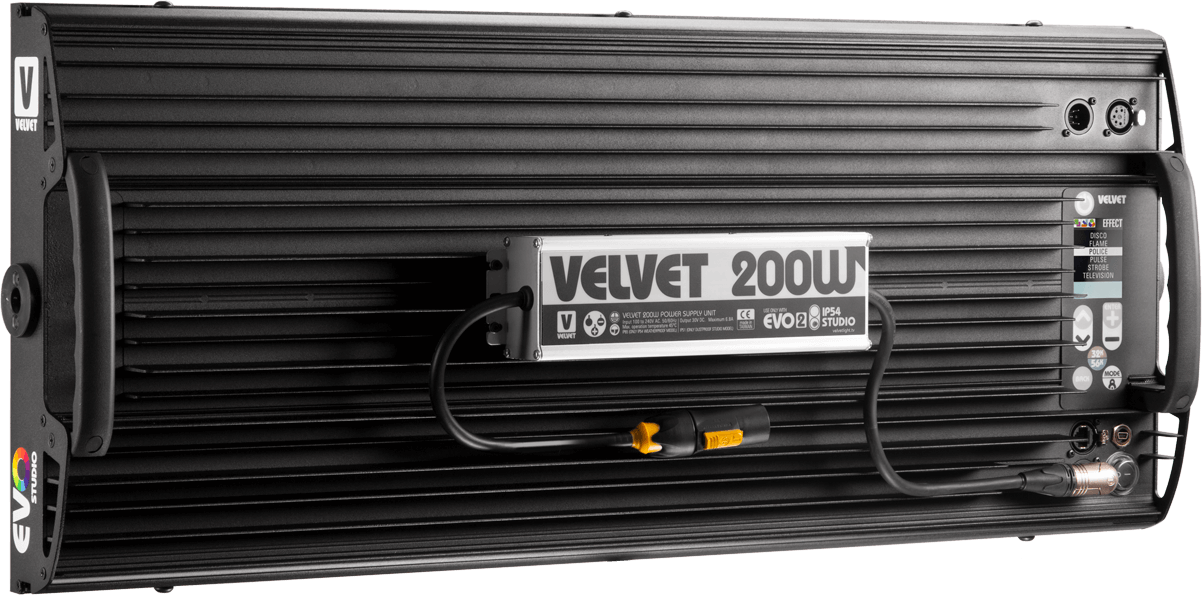

EVO 2 Studio is a dustproof, maintenance-free panel, which runs completely silent, with no fans to service. It operates exclusively on AC power and includes in and through DMX XLR5 connectors for daisychaining, Ethernet control through RJ-45, and wireless control through Art-Net Wi-Fi.
Its low weight, slim 92mm/3.6” profile and industry-leading power efficiency speed up installation.

Photometrics

studio technical specifications

BEAM ANGLE 115º

COLOR TEMPERATURE continuously adjustable from 2500K to 10.000K

LIGHT INTENSITY dimmable 0 to 100, smooth and flicker-free

GREEN-MAGENTA continuously adjustable from full minusgreen to full plusgreen

COLOR SPECTRUM full color spectrum R+G+B+W+CW with hue, saturation, and base color temperature control

CONTROL COLOR MODES CCT, HSI+, GEL, R+G+B+W+CW and EFFECTS modes
base Kelvin white light can be set combined with any color

LOCAL CONTROL with 8x shock resistant buttons and color display

WIRE CONTROL DMX-RDM with XLR-5 in & through connectors Ethernet Art-Net with RJ-45 connector

WIRELESS CONTROL Wi-Fi Art-Net +VELVET Goya App

COLOR RENDERING exceeds 96 CRI and TLCI

DIMENSIONS 753 x 318 x 128mm / 29.6 x 12.5 x 5 inches

PANEL WEIGHT 8.2 kg / 18 lb.

PANEL + YOKE WEIGHT 8.9 kg / 19.6 lb.

POWER 225W (2.0 Amps at 110 VAC)

POWER SUPPLY 90-264V AC 50/60Hz

LED RATED LIFE more than 50.000 hours

COOLING silent, fan-free passive cooling

PROTECTION Indoor or outdoor IP51 dustproof protected

CONSTRUCTION & FINISH fixture and yoke made of 100% black powdercoated extruded and sheet aluminum

RIGGING OPTIONS aluminum yoke with 16mm baby receptacles combined with 28mm junior pin, multiple ¼”-20 rigging points, double vertical yoke, pole-operated yoke.

Specifications subject to change without notice

Accessories

location

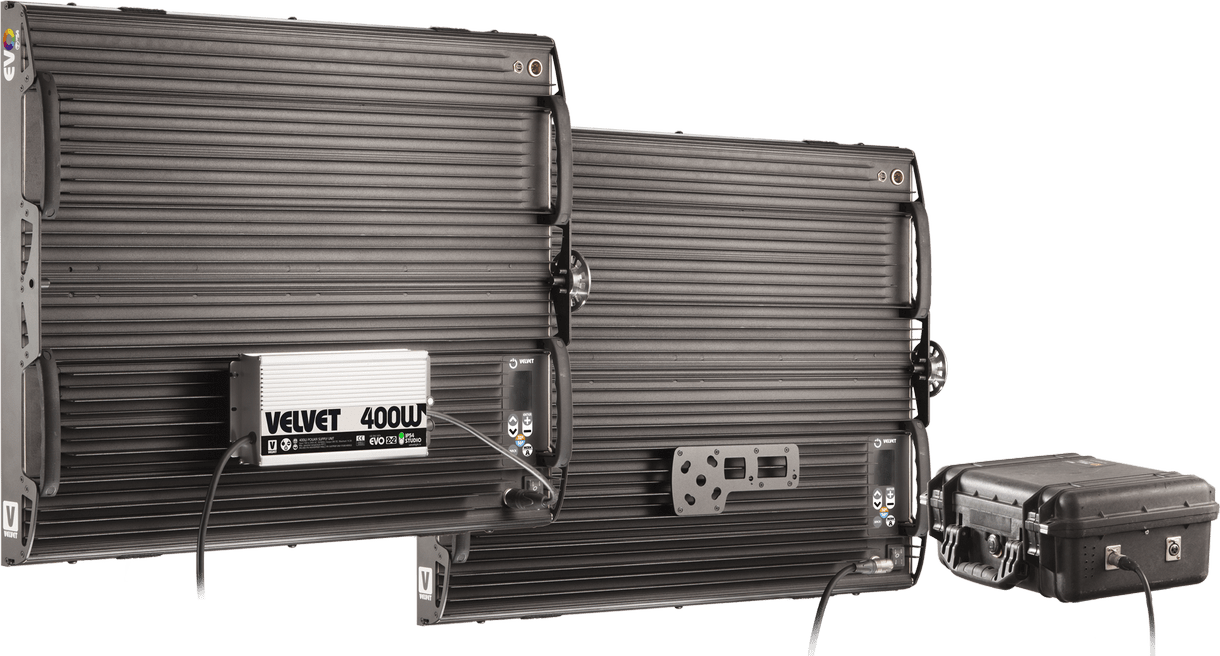

EVO 2x2 is a weatherproof color panel with a 100% aluminum housing, designed specifically to endure the toughest working conditions in wet or dusty locations.

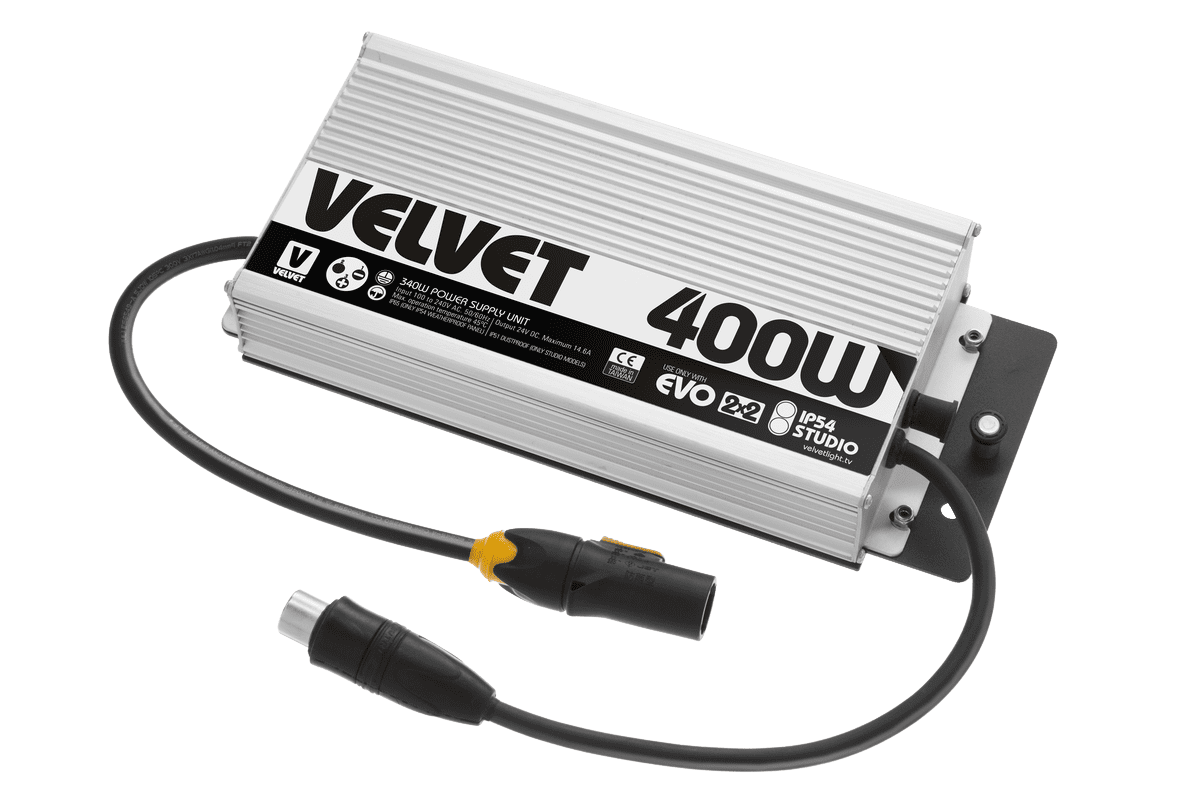

It delivers the same full output powered by a 28V battery as it does from AC power and includes built-in wireless DMX LumenRadio , Art-Net Wi-Fi and Bluetooth to remotely control through VELVET GOYA free App.

technical specifications

BEAM ANGLE 115º

COLOR TEMPERATURE continuously adjustable from 2500K to 10.000K

LIGHT INTENSITY dimmable 0 to 100, smooth and flicker-free

GREEN-MAGENTA continuously adjustable from full minusgreen to full plusgreen

COLOR SPECTRUM full color spectrum R+G+B+W+CW with hue, saturation, and base color temperature control

CONTROL COLOR MODES CCT, HSI+, GEL, R+G+B+W+CW and EFFECTS modes
base Kelvin white light can be set combined with any color

LOCAL CONTROL with shock resistant buttons and color display

WIRE CONTROL DMX-RDM with XLR-5 in connector

WIRELESS CONTROL DMX-RDM with LumenRadio CRMX Wi-Fi Art-Net,Bluetooth + Android and IOS Goya App
Bluetooth will be available on December 2019 through Firmware update

COLOR RENDERING exceeds 96 CRI and TLCI

DIMENSIONS 763 x 620 x 93mm / 30 x 24.4 x 3.6 inches

PANEL WEIGHT 13 kg / 28.6 lbs

PANEL + YOKE WEIGHT 15.3 kg / 33.7 lbs

POWER 403W (3.6 Amps at 110 VAC)

POWER SUPPLY 28V DC (XLR3). 90-264V AC 50/60Hz

LED RATED LIFE more than 50.000 hours

COOLING no noise, fan pasive cooling

PROTECTION IP54 rain and dustproof, indoor or outdoor use

CONSTRUCTION & FINISH fixture and yoke made of black powdercoated extruded and sheet aluminum

RIGGING OPTIONS aluminum yoke with 28mm junior pin, multiple ¼”-20 rigging points, pole-operated yoke.

Specifications subject to change without notice

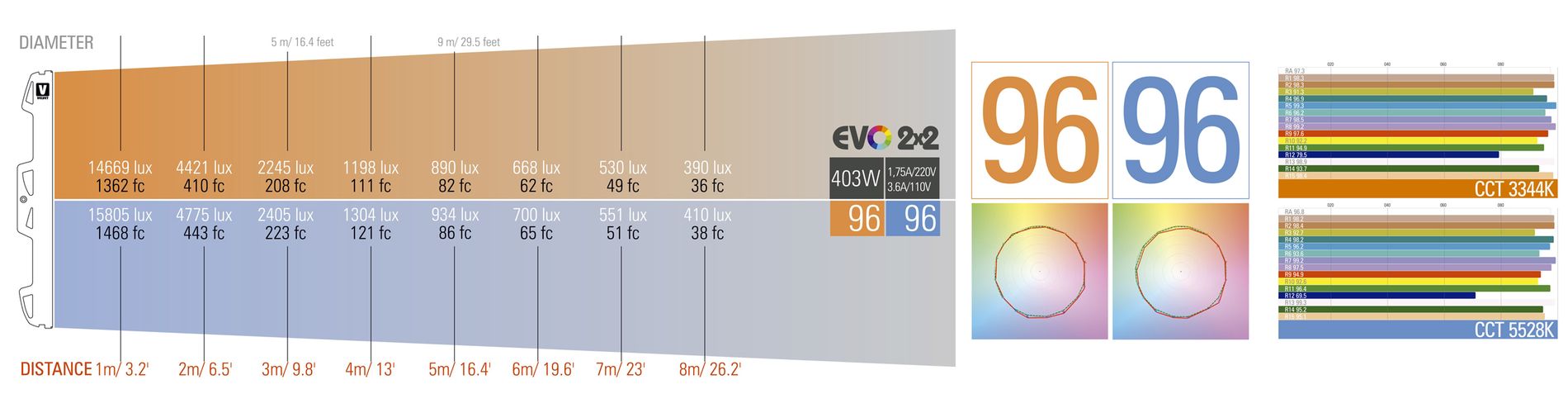

Photometrics

studio

EVO 2x2 Studio is a dustproof, maintenance-free color panel, which runs completely silent, with no fans to service. It operates exclusively on AC power and includes in and through DMX XLR5 connectors for daisychaining and Ethernet control through RJ-45. The built-in Art-Net Wi-Fi and Bluetooth allow advanced remote control through VELVET GOYA free App.
Unparalleled EVO color light quality emitted from an exclusive 2x2 aperture.

Photometrics

technical specifications

BEAM ANGLE 115º

COLOR TEMPERATURE continuously adjustable from 2500K to 10.000K

LIGHT INTENSITY dimmable 0 to 100, smooth and flicker-free

GREEN-MAGENTA continuously adjustable from full minusgreen to full plusgreen

COLOR SPECTRUM full color spectrum R+G+B+W+CW with hue, saturation, and base color temperature control

CONTROL COLOR MODES CCT, HSI+, GEL, R+G+B+W+CW and EFFECTS modes
base Kelvin white light can be set combined with any color

LOCAL CONTROL with shock resistant buttons and color display

WIRE CONTROL DMX-RDM with XLR-5 in & through connectors. Ethernet Art-Net with RJ-45 connector

WIRELESS CONTROL Wi-Fi Art-Net, Bluetooth + Android and IOS Goya App
Bluetooth will be available on December 2019 through Firmware update

COLOR RENDERING exceeds 96 CRI and TLCI

DIMENSIONS 763 x 620 x 113mm / 30 x 24.4 x 4.4 inches

PANEL WEIGHT 16 kg / 35.2 lbs

PANEL + YOKE WEIGHT 18.3 kg / 40.3 lbs

POWER 403W (3.6 Amps at 110 VAC)

POWER SUPPLY 90-264V AC 50/60Hz

LED RATED LIFE more than 50.000 hours

COOLING no noise, fan pasive cooling

PROTECTION IP51 dustproof, indoor or outdoor protected use

CONSTRUCTION & FINISH fixture and yoke made of black powdercoated extruded and sheet aluminum

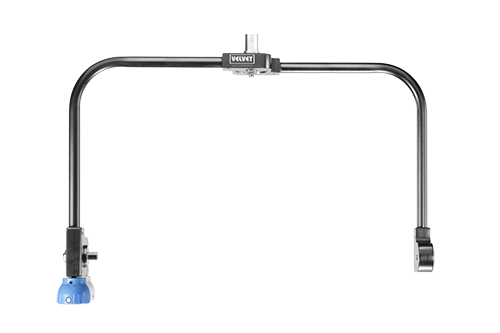

RIGGING OPTIONS aluminum yoke with 28mm junior pin, multiple ¼”-20 rigging points, pole-operated yoke.

Specifications subject to change without notice

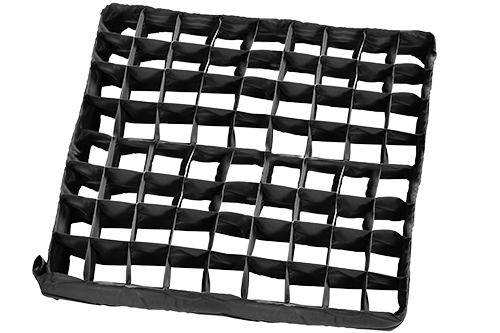

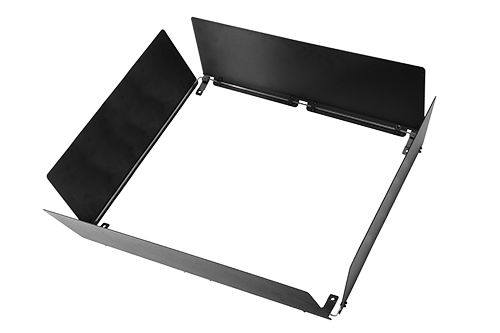

Accessories

Benefits

EVO´s ultra-white inner reflector focuses the light from each LED onto the front optic diffuser resulting in a super-soft, uniform, and natural look at any white light or color setting. VELVET’s softness is now EVO super-soft, with a beautiful wraparound light quality.


EVO’s 5LED R+G+B+W+CW) produce much saturated colors, a wider gamut and more natural white light than any competitor.

Settings on one mode can be fine-tuned in any other. Any base white light can be set to combine with any color or gel.

EVO is kind to its operator with comfortable handles, rounded side panels and yoke, color display, shock-resistant buttons, quick-link accessory plate and multiple sliding ¼-20” rigging points. Setting up or reconfiguring from shot to shot is quick and easy.

EVO is a reliable partner on any location or in any studio. Its robust and weatherproof IP54 aluminum housing is 5kg /11 lb. lighter than its competitors, and operates 100% silently with no fans to service. And, EVO’s industry-leading efficiency allows for full light output using 14.4V batteries.
