Barndoors for VK200
Ref: VK200-RB
Kit of 4-leaf rotating barndoors for VK200
KOSMOS
The real fresnel feeling
Green
product
RGB
pannel
Highlights
Color tunable fresnel light
KOSMOS is the compact color-tunable fresnel with built-in ballast, producing unprecedented output due to its V5LED light engine. KOSMOS simplifies color selection and adjustment showing on the touchscreen the actual color you are creating. High color reproduction (96 TLCI) for color skin tones. Smooth stepless dimming and flicker free operation up to 12000 fps. Any base white light from 2500 to 10000K can be set to combine with any color or gel.
Motorized zoom
Change the powerful light beam angle on air from 13 to 56 locally or remotely with no need to access the luminaire. A lightweight low-carbon aluminum body; KOSMOS has a resistant housing made in recycled aluminum which reduces our/your carbon footprint. A real “made to last” lighting fixture 100% manufactured in Barcelona.
True borosilicate fresnel lens
A true borosilicate glass fresnel lens produces a traditional fresnel shading effect and guarantees a consistent color reproduction over the years. The shadow and color light is homogeneous throughout the beam range. The large size of the lens produces a natural, hard wraparound and directional fresnel light with the VELVET touch to create beauty images.

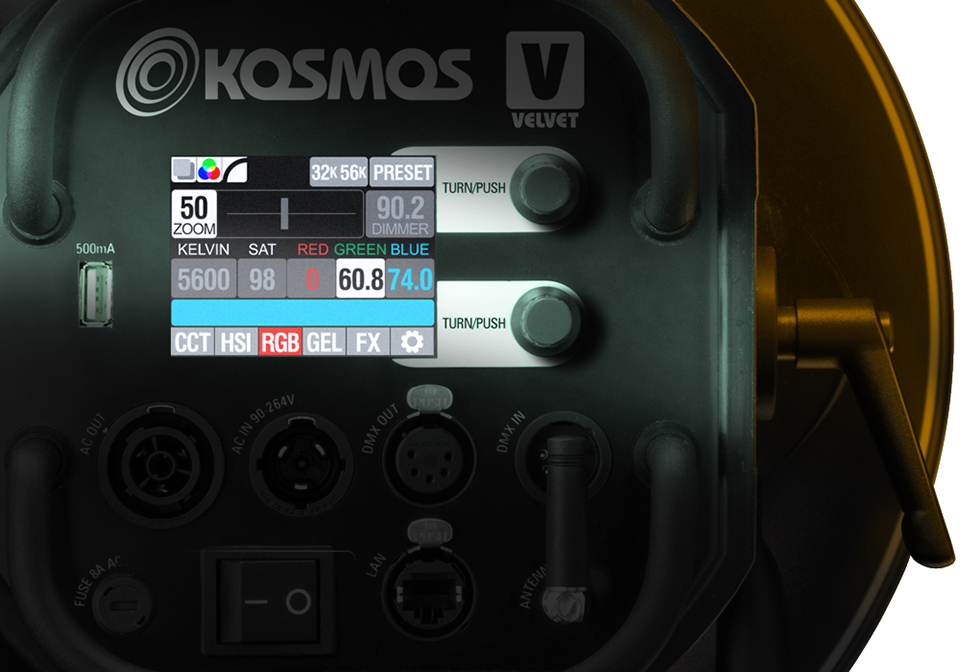

Total control
KOSMOS can be controlled locally, due to a full color touchscreen, or wirelessly. KOSMOS gives immediate remote control on beam angle, color, effects or presets through DMX-RDM, Wi-fi Artnet and Bluetooth. Using the VELVET GOYA App (Android/IOS) gives instant full control. Create, save, load or share your own gels, effects or user profiles, and use the app’s color-picker to recreate colors from a photo or image.
Silent operation
Four fan operation modes. 1. FAN OFF: option available. 2. SILENT: fan operation with low noise priority. 3. FULL SPEED: fan operation with cooling priority. 4. DYNAMIC: fan speed depending on light engine temperature. VELVET electronics and a passive liquid cooling system with a sealed 3D chamber and silent fan keep the LEDs at the optimum temperature and give the diodes a 50,000-hour lifespan.

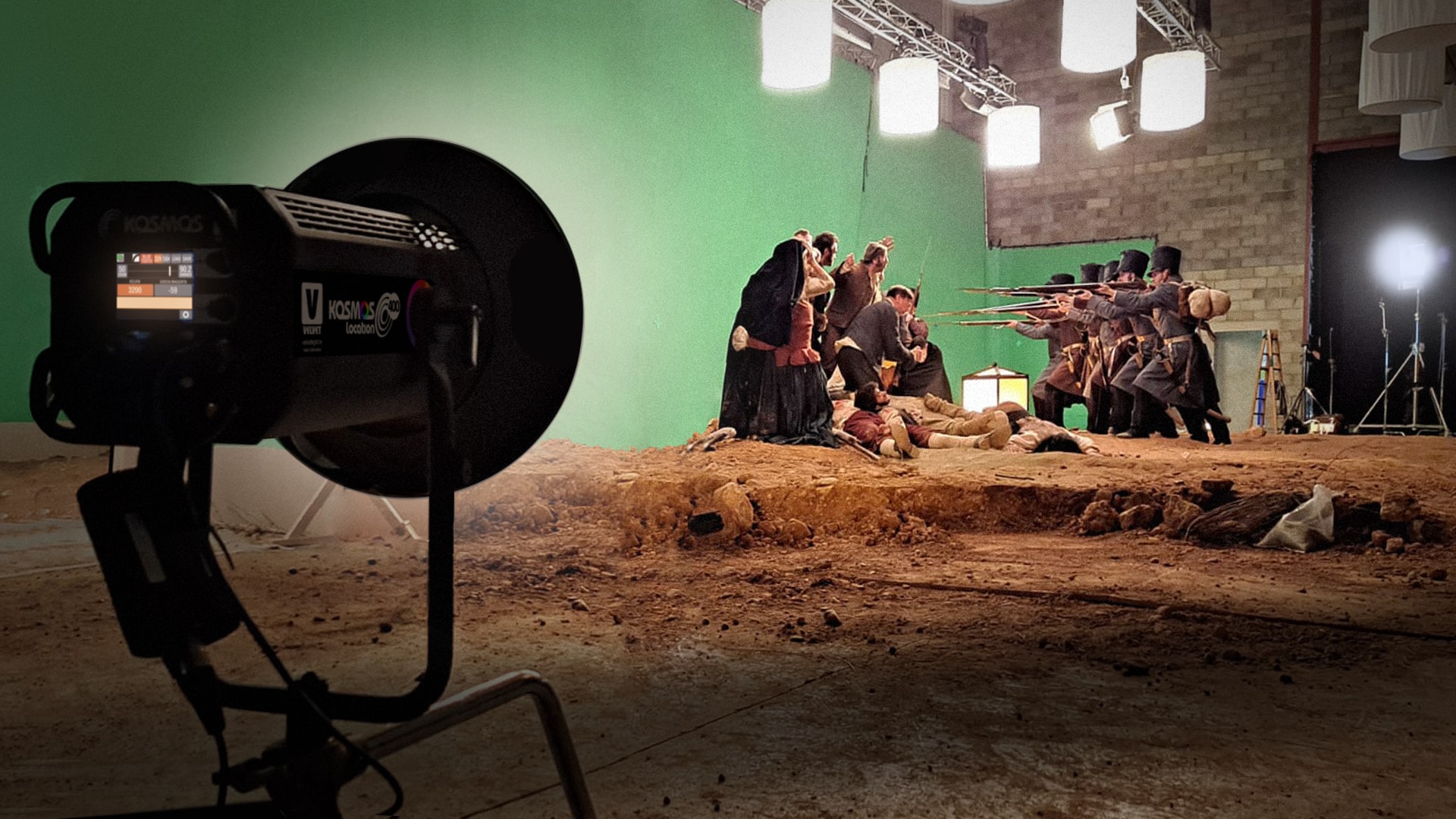

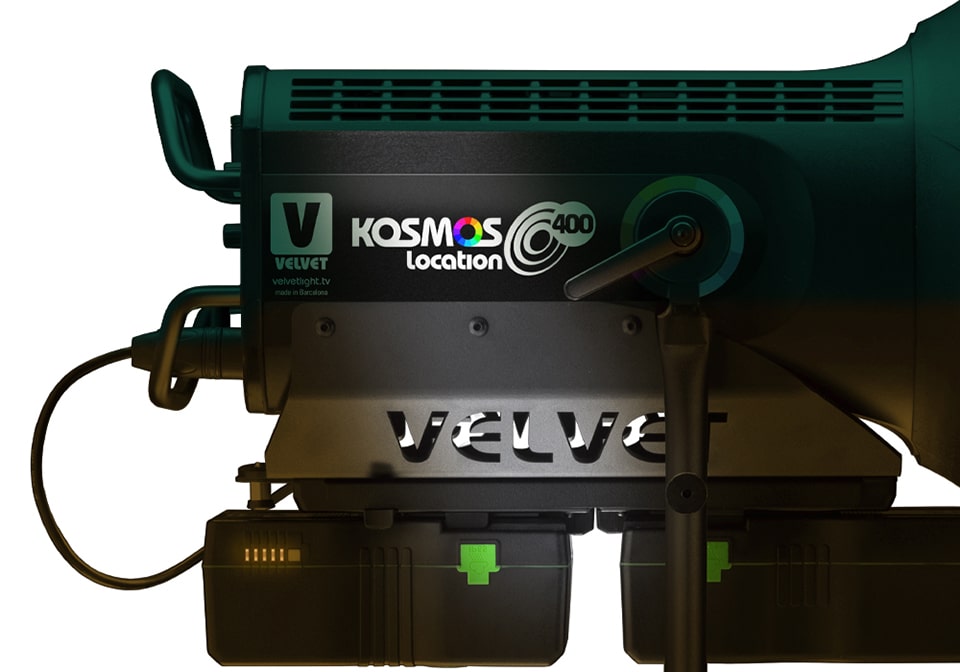

High efficiency: 100% output even with batteries
VELVET delivers exceptional light quality with minimal energy consumption. With the best lux-watt ratio on the market, its advanced technology ensures outstanding illumination while significantly reducing power needs. Truly sustainable, KOSMOS combines superior performance with a genuine commitment to environmental responsibility.
Available models
Choose your fixture
KOSMOS 200 Color
KOSMOS 400 Color
KOSMOS 200 Color
KOSMOS 400 Color
Optical system
Motorized ZOOM Fresnel
Light aperture
Borosilicate glass Fresnel lens 250mm / 10”
Light engine
25mm full color spectrum R+G+B+W+CW VELVET ceramic COB
Green-magenta
Continuously adjustable (full plusgreen to full minusgreen)
Color control modes
CTT, HSI, CTT+RGB, Gels and Effects with ZOOM in every Mode
NOTE: base Kelvin white light can be set combined with any color
Light intensity
Dimmable 0 to 100, smooth and flicker-free
Local control
Rotary knob and display + 3200K / 5600K quick access + Mode selection buttons
Wire control
DMX-RDM with XLR-5 In + LAN connectors
Wireless control
DMX-RDM with LumenRadio
Tlci index
96 at 3197K and 98 at 5676K
Photometrics
10º — 3200K
9900 lux / 920 fc at 3m / 10 feet - 2250 lux / 209 fc at 6m / 20 feet
10º — 5600K
10700 lux / 994 fc at 3m / 10 feet - 2510 lux / 233 fc at 6m / 20 feet
45º — 3200K
3510 lux / 326 fc at 3m / 10 feet - 920 lux / 85 fc at 6m / 20 feet
45º — 5600K
3840 lux / 357 fc at 3m / 10 feet - 1040 lux / 97 fc at 6m / 20 feet
Beam angle
From 10° to 45°
Dimensions
290x583x176mm / 11.5x23x7 inches (Without yoke)
Weight
9.3 kg/ 20.5 lbs (fixture)
9.8 kg/ 22.6 lbs (fixture + yoke)
Power draw
230W (0.9A at 220VAC — 1.8A at 110VAC)
Power supply
96-260V AC XLR-3 IN connector
Led rated life (L70)
More than 50.000 hours
Power connection
Neutrik PowerCon TRUE1 TOP In & Out connectors
Ouput frequency
Over 12,000 fps
Operation temperature
From -20ºC to +40ºC
Cooling
Passive liquid cooling system into sealed 3D chamber with silent fan
Protection
IP30, indoor or outdoor protected use
Rigging options
Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, pole operated yoke.
Quick mounting accessories
Foldable SnapBag, foldable Snapgrid, Octa, Lantern, removable Barn doors, hard case,
Construction & finish
Fixture and yoke made of die-cast aluminum
Accesories
LumenRadio
Ref: VK-LR
Yoke
Ref: VK42-YTK
Tubular yoke kit for VK200 and VK400 with 28mm junior pin
Pole Operated
Ref: VK42-YPO
Pole Operated yoke kit for VK200 and VK400 with 28mm junior pin
Safety cable
Ref: SLI-200000FS
Safety cable 1m.
Filter frame
Ref: VK400-FF
Filter frame for VK400
Barndoors
Ref: VK400-RB
Barndoors for VK400
Barndoors (8-leaf)
Ref: VK400-RB8
8-leaf barndoors for VK400
Barndoors (8-leaf)
Ref: VK200-RB8
8-leaf barndoors for VK400

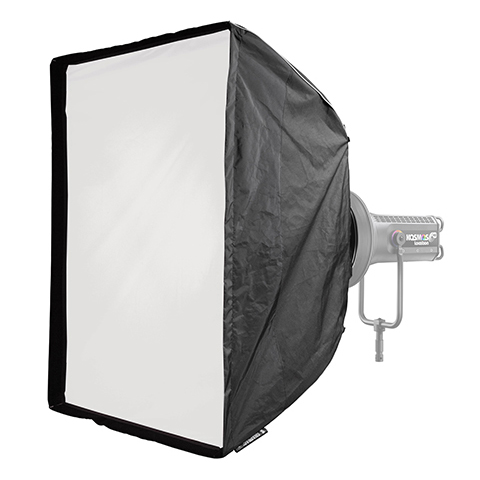

Snapbag
Ref: VK400-SB
Snapbag Medium for VK400

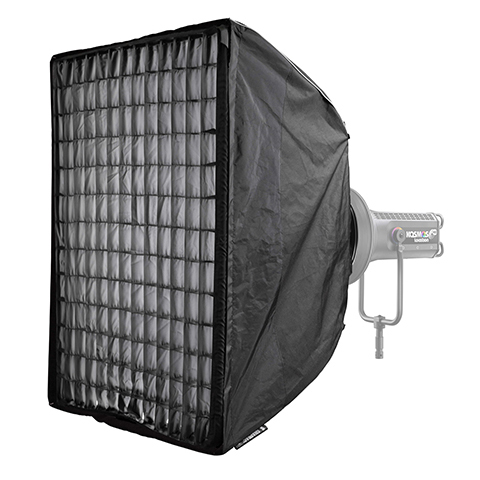

Snapgrid
Ref: VK400-SGxSB
DopChoice 40º foldable Snapgrid for Snapbag Medium VK400

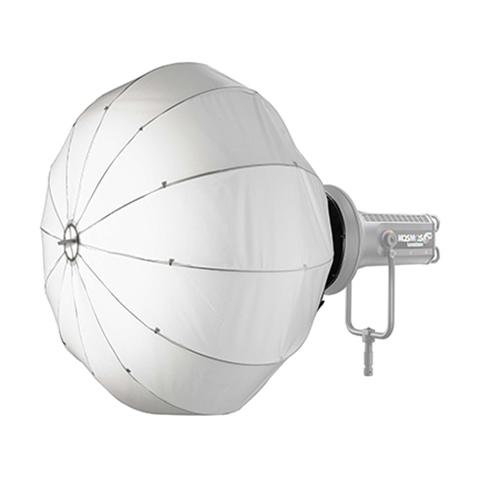

Lantern
Ref: VK400-SL
DopChoice large Lantern dome for VK400
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DC extension cable
Ref: CAB-XLR3DCC4.5M
DC extension cable 4,5m. / 15 ft. XLR3
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
PowerCon TRUE1 cable
Ref: CAB-PWC4MTRUE
PowerCon TRUE1 daisy-chain cable 4m. / 13ft.
PowerCon TRUE1 cable
Ref: CAB-PWC2MTRUE
PowerCon TRUE1 daisy-chain cable 2m. / 6ft.
Wi-Fi router
Ref: VE-ROUTER
VELVET Wi-Fi router to remotely control Evo
