Yoke
Ref: VK42-YTK
Tubular yoke kit for VK200 and VK400 with 28mm junior pin
Highlights

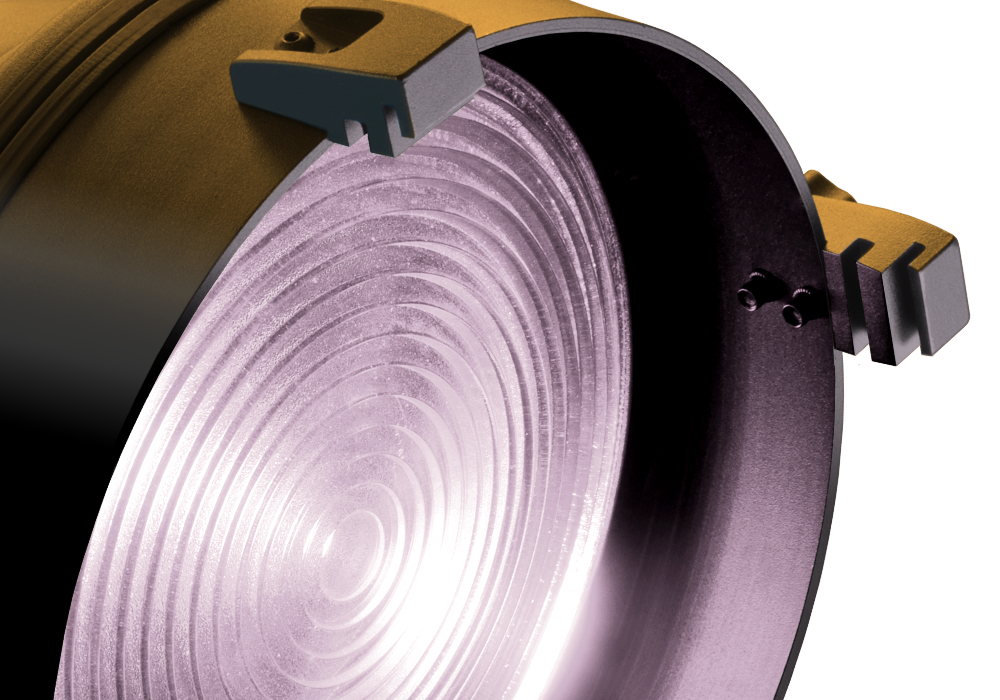

Bicolor with Green/Magenta adjustment
KOSMOS is the compact bicolor fresnel with built-in ballast, producing unprecedented output due to its ultimate white light engine continuously adjustable from 2700K to 6500K and Green/Magenta adjustment. High color reproduction (93-94 TLCI) for skin tones. Smooth stepless dimming and flicker free operation up to 12000 fps.

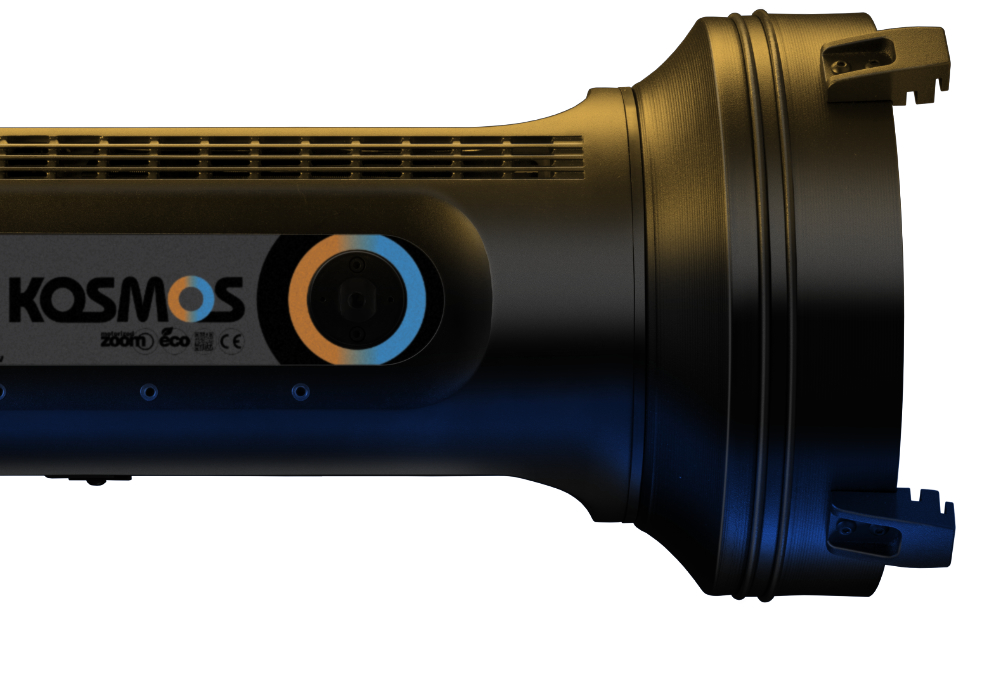

Motorized zoom for instant beam control
Shift the beam angle seamlessly from 13° to 56°, either locally or remotely, without needing to touch the fixture. KOSMOS is crafted from lightweight, low-carbon recycled aluminum, combining durability with sustainability. 100% Made in Europe to last.

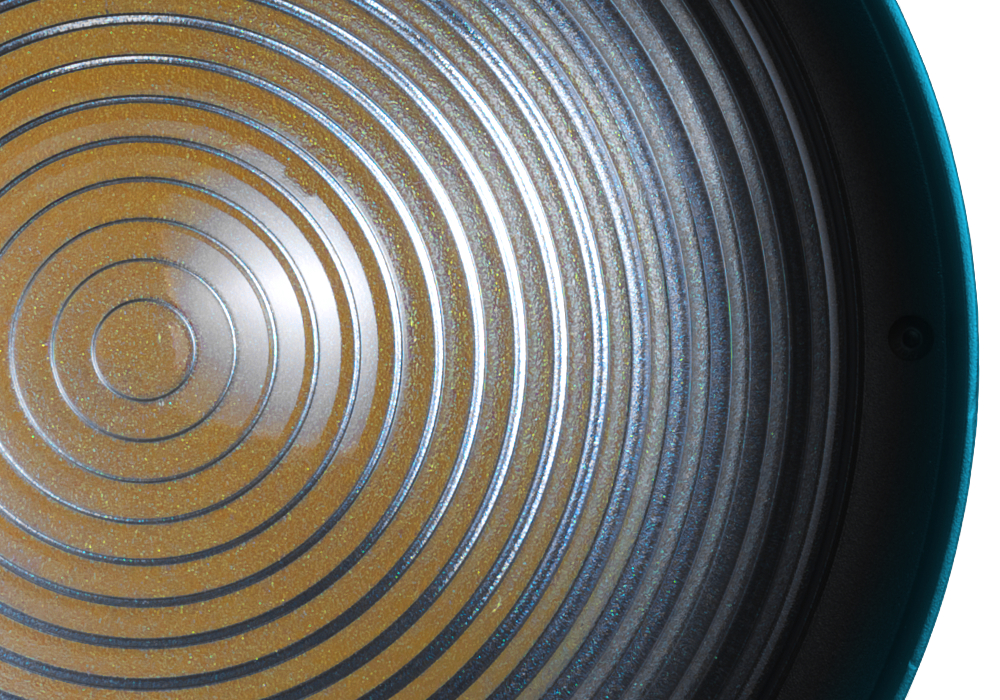

True borosilicate fresnel lens
A true borosilicate glass fresnel lens produces a traditional fresnel shading effect and guarantees a consistent color reproduction over time. The shadow and color temperature is homogeneous throughout the beam range. Its large diameter produces a natural, hard yet wraparound beam with uniform shadows and a signature VELVET softness, ideal for beautiful, cinematic images.

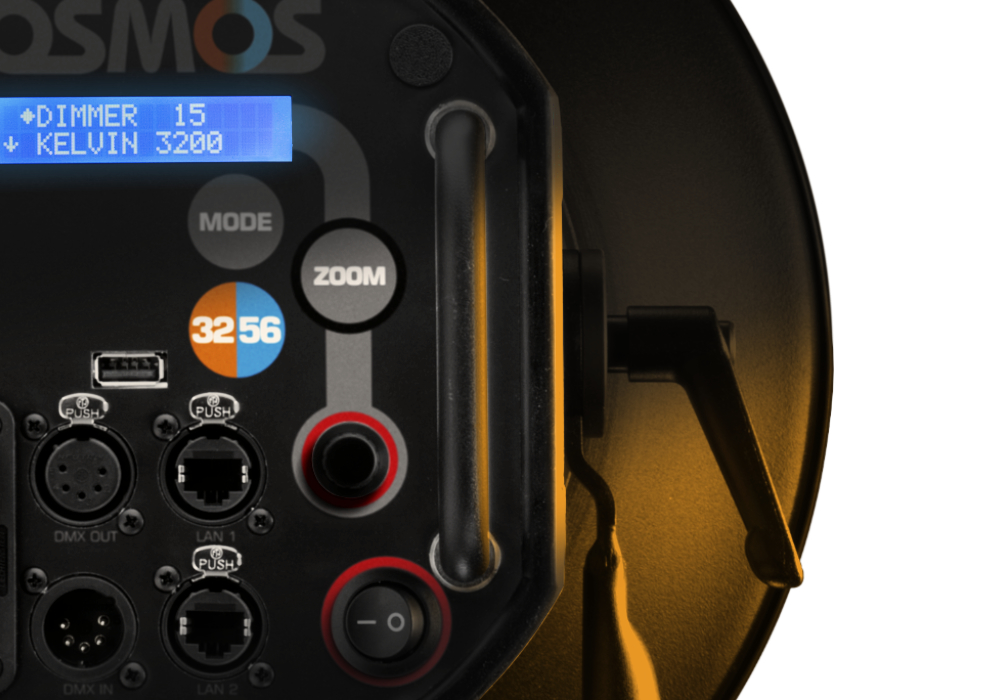

Total control
Control KOSMOS on-site or remotely through DMX-RDM. With optional LumenRadio connectivity. You can instantly adjust beam angle, color temperature and presets wirelessly, making it production-ready for any setup.

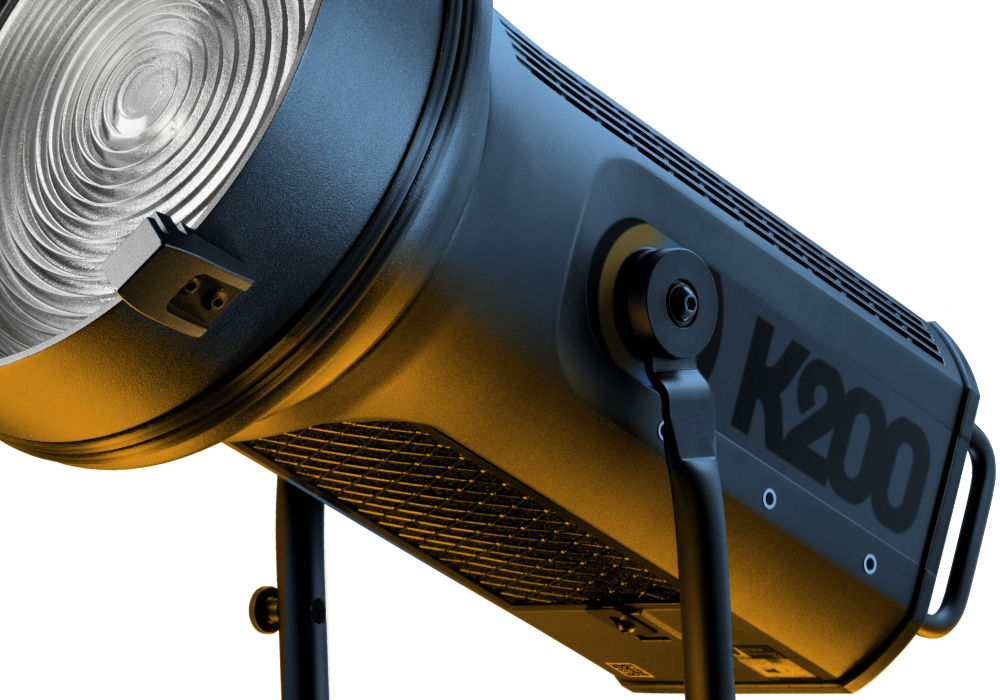

Silent and intelligent operation
Choose from four cooling modes to suit your environment: FAN OFF (for absolute silence), SILENT (low-noise priority), FULL SPEED (maximum cooling), DYNAMIC (temperature-responsive). A passive liquid cooling system with a sealed 3D chamber and silent fan keeps the LEDs at optimal temperature, ensuring long-term reliability and a 50,000-hour LED lifespan.

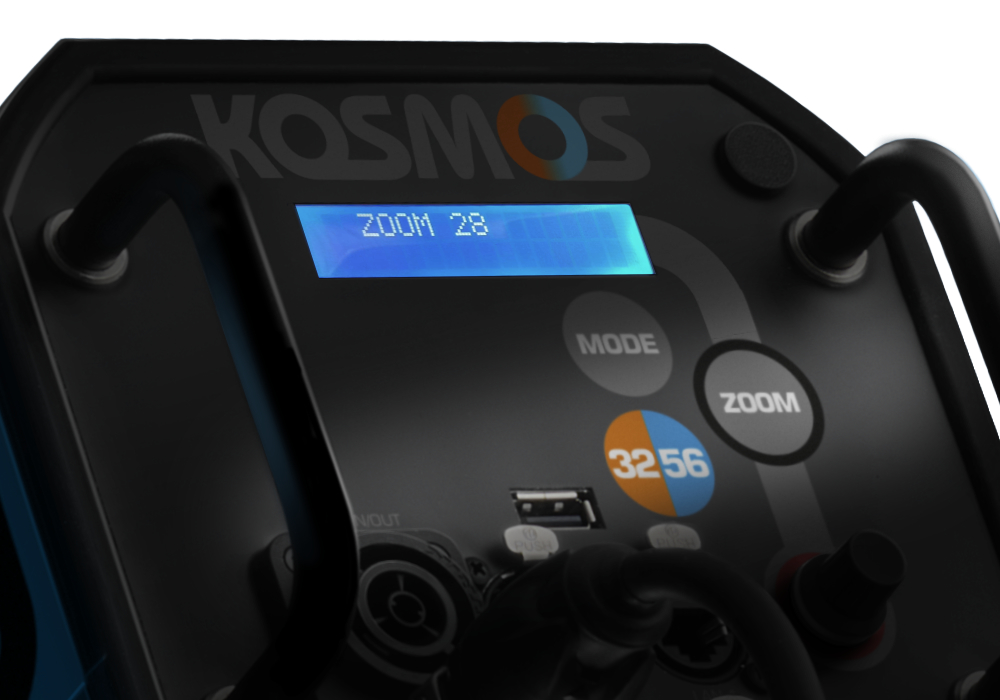

Digital display adjustments
The digital display simplifies any light parameter or zoom while one rotary knobs provide precise manual adjustments.

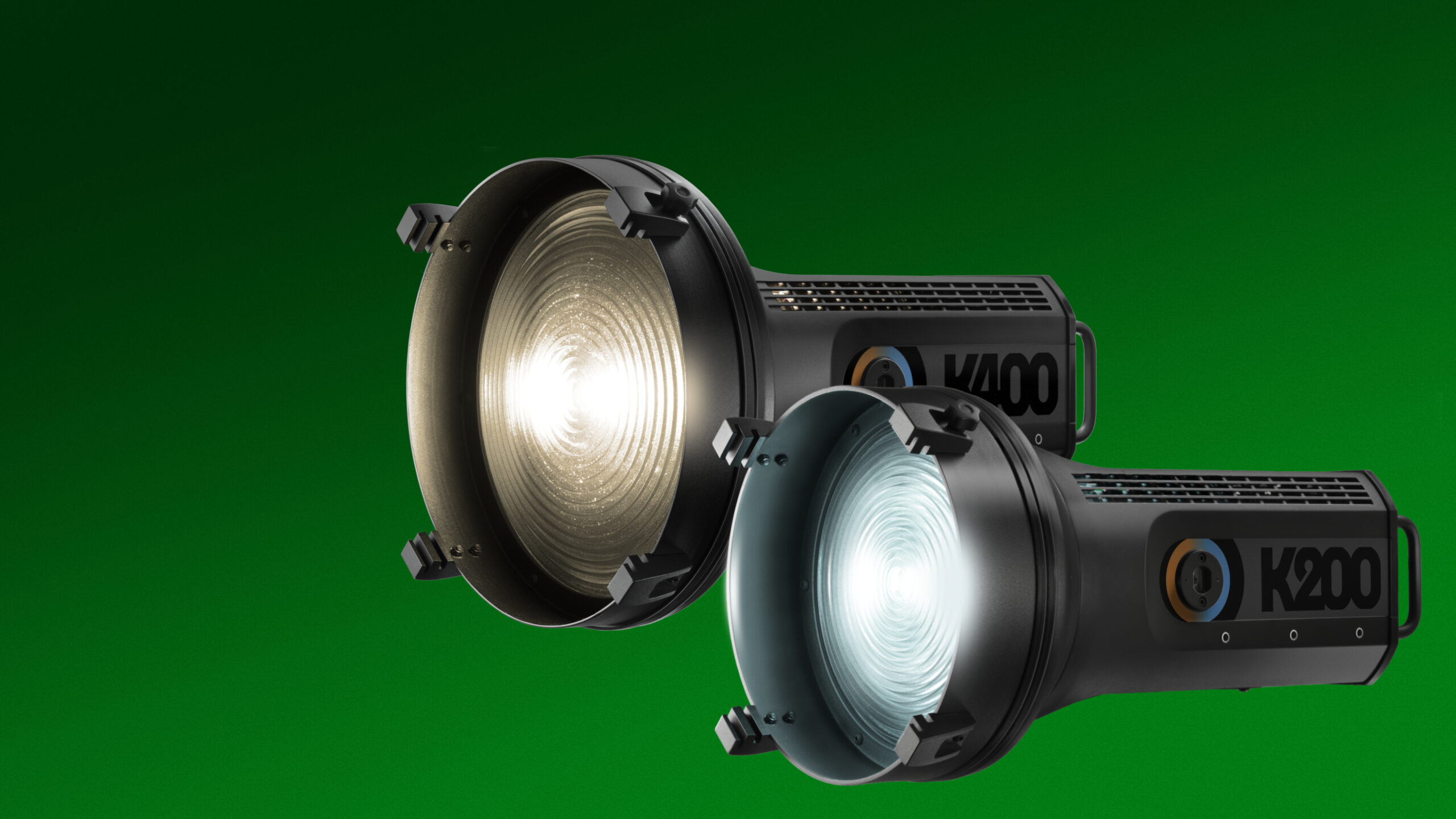

Available models
Choose your fixture
KOSMOS 400 Bicolor
KOSMOS 200 Bicolor
KOSMOS 400 Bicolor
KOSMOS 200 Bicolor
Optical system
Motorized ZOOM Fresnel
Light aperture
Borosilicate glass Fresnel lens 300mm / 12”
Light engine
35 mm Kelvin white light VELVET ceramic COB LED
Color temperature
Continously adjustable from 2700K to 6500K (100K increments)
Green-magenta
Continuously adjustable from full Plusgreen to full minusgreen
Light intensity
Dimable 0 to 100, smooth and flicker free
Control
Local via rotary knob+display, 32K/ 56K button, Zoom button and Mode dedicated button. Wire DMX-RDM, Art-Net through Ethernet RJ-45 connectors and LumenRadio (optionally)
Tlci index
93 at 3200K and 94 at 5600K
Photometrics
Beam angle 50º: 6530 lux / 607 fc at 3m / 10 feet — 1700 lux / 158 fc at 6m / 20 feet
Beam angle 13º: 27000 lux / 2508 fc at 3m / 10 feet — 7000 lux / 650 fc at 6m / 20 feet
Beam angle
From 13° to 56°
Dimensions
320x534x167mm / 12.60x21.02x6.57 inches (Without yoke)
Weight
9.3 kg / 20.5 lbs (fixture)
9.8 kg/ 22.6 lbs (fixture + yoke)
Power draw
400W (1.8A at 220 VAC / 3.7A at 110 VAC)
Power supply
Build-in Power Supplu Unit. 90-264 50/60 Hz
Led rated life (L70)
More than 50,000 hours
Power connection
Neutrik PowerCon© TRUE1 compatible In & Out connectors
Ouput frequency
12,000 fps
Operation temperature
From -20ºC to +40ºC
Cooling
Passive liquid cooling system into sealed 3D chamber with silent fan
Protection
IP30, indoor or outdoor protected use
Rigging options
Aluminum yoke with 28mm junior pin, pole operated yoke.
Quick mounting accessories
Removable Barn doors, Pole operated Yoke, Filter frames
Construction & finish
Fixture and yoke made of die-cast aluminum
Accesories

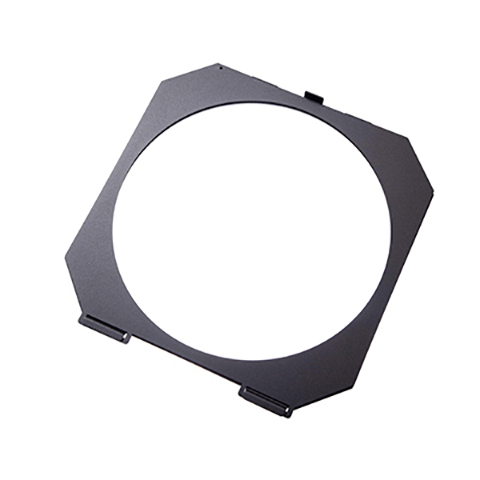

Filter frame
Ref: VK400-FF
Filter frame for VK400
Barndoors
Ref: VK400-RB
Barndoors for VK400

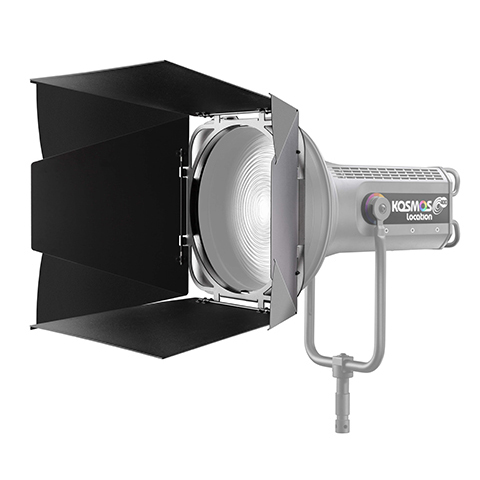

Barndoors (8-leaf)
Ref: VK400-RB8
8-leaf barndoors for VK400
