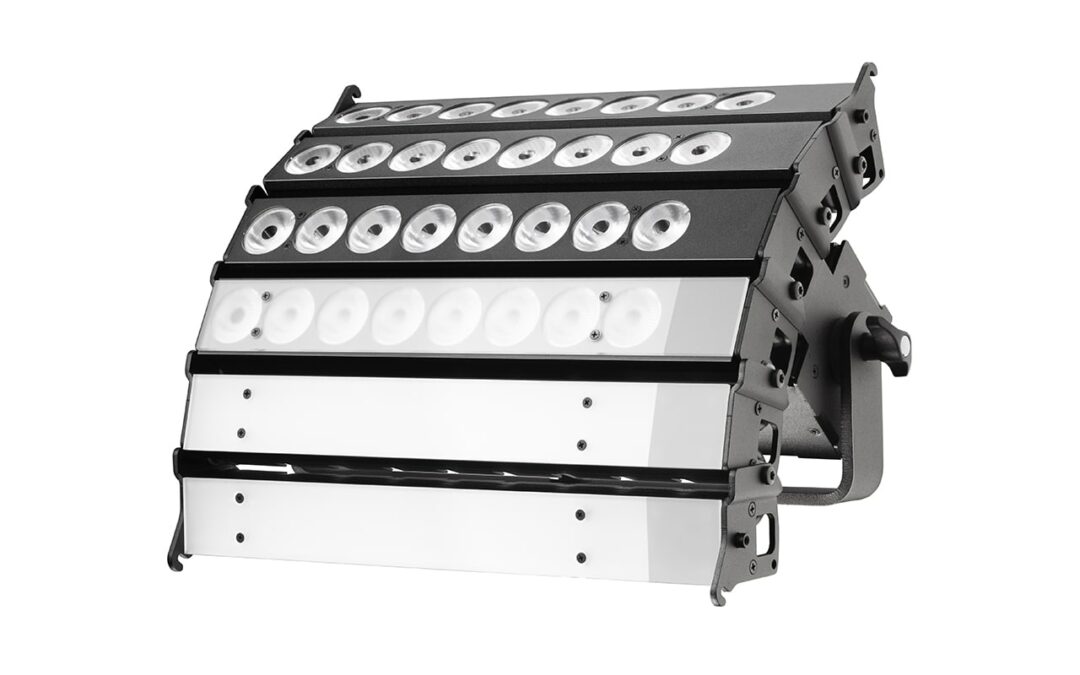

CYC 6
COLOR ASYMMETRICAL BEAM FIXTURE
VELVET CYC are cyclorama and wash RGBW asymmetrical fixtures specially designed to evenly wash backgrounds and to create not only any homogeneous color but also horizontal gradient color effects thanks to their multiple light engines. Every VELVET CYC consents the individual control of each of its battens.
VELVET CYC 6 color tunable articulated LED fixture includes:
-
-
Built-in AC power supply to run exclusively AC from 90V to 264V
-
6x horizontal light battens individually controlled
-
2x XLR5 connectors (In and Through) for DMX-RDM wire control
-
Wi-Fi Art-Net wireless remote control
-
The VELVET CYC are compact, portable, silent, maintenance-free and high-quality color tunable LED cyclorama lights.
The VELVET CYC emit variable colored light with adjustable color temperature and adjustable green/magenta correction.
Every fixture can be controlled using DMX-RDM protocol, Art-Net through Wi-Fi or locally with shock-resistant buttons and color display.
Individual light engines for horizontal effects
Every VELVET CYC consents the individual control of each of its horizontal battens to create gradient color effects thanks to their multiple light engines.
This unique individual light engine control allows to create perfectly homogeneous color backgrounds or to create soft white or colored gradients with different degrees of saturation but you can even combine different colors creating horizontal color mixtures with infinite creative possibilities,
Beam angle variation
Unlike any standard Cyc light the articulated structure of the VELVET CYC fixtures lets you easily and mechanically change the vertical beam angle by simply bending the fixture in or out.
The vertical beam angle adjustability combined with the individual light engine control lets you fine tune your light to get homogeneous illumination over any kind of flat or infinite background.
Silent and cool light
The VELVET CYC runs completely silently, with no fans to service.
Smooth Theatrical dimming
Advanced electronics and software provide smooth step-less dimming down to zero at any color setting. For further precision includes three dimming curves.
Cost effective background light
You only need to display the luminaries along a row 1,5 meters out of the background and separated 1,35 meters among them.
VELVET CYC 6 unique asymmetrical optic design provides cost effective and quick installation using a single row of luminaries to wash up to 6 meters high backgrounds.
VELVET CYC 6 consumes 125W – covers a 1.35m x 6m /4.4 feet x 20 feet high background and 900 Lux / 46 fc homogeneous beam
Powerful output for Broadcast and Film
The VELVET CYC has been specially developed to get a powerful and homogeneous beam of 900 Lux as requested on broadcast and film productions.
VELVET CYC delivers a wealthy Lux/fc level on the backgrounds and it is flicker free up to 2000 fps for high speed recording.
Total Control built-in
VELVET CYC can be fully, quickly and easily controlled in any possible way, locally or wirelessly.
Wireless control
-
Wi-Fi Art-Net to control from Smartphone or tablet with any third-party application or device.
Wire control
-
DMX-RDM through XLR-5 in and out connectors
Local control
The color display offers unlimited possibilities, quick user-friendly control and shock-proof buttons.
-
Gels list are displayed as colors
-
White light or color adjustment preset is always visible on its real color.
NUMBER OF LIGHT ENGINES |
6 |
COLOUR TEMPERATURE |
Continuously adjustable from 2.500K to 10.000K |
LIGHT INTENSITY |
Dimmable 0 to 100, smooth and flicker-free |
GREEN/MAGENTA CORRECTION |
Continuously adjustable (full Plusgreen to full Minusgreen) |
COLOR CONTROL MODES |
CTT mode, HSI+ mode, GEL mode, RGB+ mode, EFFECTS mode |
LOCAL CONTROL |
Shock proof buttons and color display |
WIRE CONTROL |
DMX-RDM with XLR-5 IN & OUT connectors
|
WIRELESS CONTROL |
Wi-Fi ArtNet |
TLCI INDEX |
96 TLCI 3200K and TLCI 95 5600K |
PHOTOMETRICS |
1080 Lux / 100 fc over a background of up to 6 meters |
BEAM ANGLE |
asymmetrical adjustable: horizontal beam angle 45º vertical beam angle adjustable 45º to 125º |
DIMENSIONS |
340x300x148mm / 13,4x12x,2,7″ |
WEIGHT |
6.1kg / 13.4 lbs. including yoke |
POWER DRAW |
152W |
POWER SUPPLY |
90-264 VAC 50/60Hz |
LED RATED LIFE |
more than 50.000 hours L70 more than 35.000 hours L80 |
POWER CONNECTION |
Neutrik PowerCon TRUE1 TOP in and out connectors |
OUTPUT FREQUENCY |
flicker-free up to 2000fps |
OPERATION TEMPERATURE |
from -20ºC to +40ºC |
COOLING |
no-noise, fan-free passive cooling |
PROTECTION |
IP21dustproof, indoor or outdoor protected use |
VELVET LED CYC TECHNOLOGY |
RGBW high-power selected BIN LED core unit + multi Fresnel system |
RIGGING OPTIONS |
aluminum yoke with 16 female combined with 28 pin, swivel ball head, pole operated yoke |
QUICK MOUNTING ACCESSORIES |
removable barn doors, flight case |
CONSTRUCTION & FINISH |
Black anodized extruded aluminum and black powder coated sheet aluminum |
Specifications subject to change without notice.
